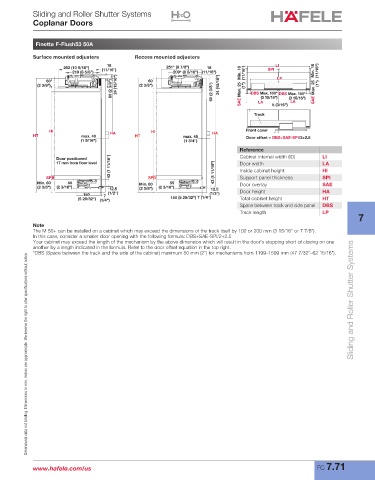

Sliding and Roller Shutter Systems
Coplanar Doors

Finetta F-Flush53 50A

Surface mounted adjusters Recess mounted adjusters
18
262 (10 5/16") (11/16") 251* (9 7/8") 18 SPI LI
219 (8 5/8") 209* (8 5/16") (11/16") Min. 18 (11/16") Min. 18 (11/16")
60 60 LP
60 (2 3/8") 60 (2 3/8") SAE Max. 25 DBS Max. 100* DBS Max. 100* SAE Max. 25
(2 3/8") 24 (15/16") (2 3/8") 24 (15/16") (1") (1")
(3 15/16")
(3 15/16")
LA
LA
Track 5 (3/16")

HI HA HI HA Front cover
HT max. 40 HT max. 45 Door offset = DBS+SAE-SPI/2+2.5
(1 9/16") (1 3/4")
Reference
Door positioned Cabinet internal width (ID) LI
17 mm from floor level 43 (1 11/16") Door width LA

Support panel thickness
SPI
SPB SPB 43 (1 11/16") Inside cabinet height HI
Min. 60 55 Min. 60 55 Door overlay SAE
(2 3/8") (2 3/16") 12.5 (2 3/8") (2 3/16") 12.5 Door height HA
150 7 (1/2") (1/2")
(5 29/32") (1/4") 150 (5 29/32") 7 (1/4") Total cabinet height HT
Space between track and side panel DBS
Track length LP
7
Note
The M 50+ can be installed on a cabinet which may exceed the dimensions of the track itself by 100 or 200 mm (3 15/16" or 7 7/8").
In this case, consider a smaller door opening with the following formula: DBS+SAE-SPI/2+2.5
Your cabinet may exceed the length of the mechanism by the above dimension which will result in the door's stopping short of closing on one
another by a length indicated in the formula. Refer to the door offset equation in the top right.
*DBS (Space between the track and the side of the cabinet) maximum 50 mm (2") for mechanisms from 1199–1599 mm (47 7/32"–62 15/16"). Sliding and Roller Shutter Systems
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
