Sliding and Roller Shutter Systems
Coplanar Doors

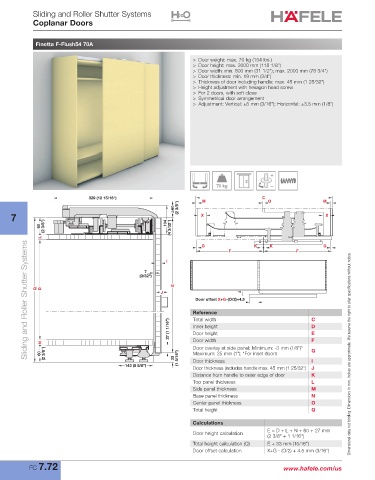

Finetta F-Flush54 70A

> Door weight: max. 70 kg (154 lbs.)
> Door height: max. 3000 mm (118 1/8")
> Door width: min. 800 mm (31 1/2"); max. 2000 mm (78 3/4")
> Door thickness: min. 19 mm (3/4")
> Thickness of door including handle: max. 45 mm (1 25/32")
> Height adjustment with hexagon head screw
> For 2 doors, with soft close
> Symmetrical door arrangement
> Adjustment: Vertical: ±5 mm (3/16"); Horizontal: ±3.5 mm (1/8")

70

329 (12 15/16")
60 (2 3/8")
7

60 (2 3/8") 104 (4 3/32")

Sliding and Roller Shutter Systems

7
(9/32")

Door offset X+G-(O/2)+4.5

Reference C
Total width
27 (1 1/16") Inner height D
Door height
E
Door width
F
Maximum: 25 mm (1"); *For inset doors
60 (2 3/8") 33 (1 5/16") Door overlay at side panel; Minimum: -3 mm (1/8")* G Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
143 (5 5/8") Door thickness I
Door thickness (includes handle max. 45 mm (1 25/32") J
Distance from handle to outer edge of door K
Top panel thickness L
Side panel thickness M
Base panel thickness N
Center panel thickness O
Total height Q

Calculations
E = D + L + N + 60 + 27 mm
Door height calculation
(2 3/8" + 1 1/16")
Total height calculation (Q) E + 33 mm (15/16")
Door offset calculation X+G - (O/2) + 4.5 mm (3/16")

FC 7.72 www.hafele.com/us
