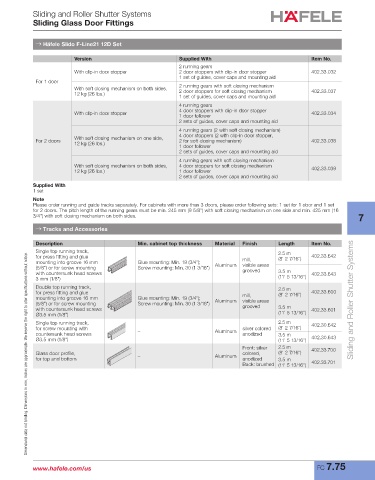

Page 595 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

→ Häfele Slido F-Line21 12D Set

Version Supplied With Item No.
2 running gears
With clip-in door stopper 2 door stoppers with clip-in door stopper 402.33.032
1 set of guides, cover caps and mounting aid
For 1 door
With soft closing mechanism on both sides, 2 running gears with soft closing mechanism
12 kg (26 lbs.) 2 door stoppers for soft closing mechanism 402.33.037
1 set of guides, cover caps and mounting aid
4 running gears
4 door stoppers with clip-in door stopper
With clip-in door stopper 402.33.034
1 door follower
2 sets of guides, cover caps and mounting aid
4 running gears (2 with soft closing mechanism)
With soft closing mechanism on one side, 4 door stoppers (2 with clip-in door stopper,
For 2 doors 2 for soft closing mechanism) 402.33.038
12 kg (26 lbs.) 1 door follower
2 sets of guides, cover caps and mounting aid
4 running gears with soft closing mechanism
With soft closing mechanism on both sides, 4 door stoppers for soft closing mechanism
12 kg (26 lbs.) 1 door follower 402.33.039
2 sets of guides, cover caps and mounting aid
Supplied With
1 set
Note
Please order running and guide tracks separately. For cabinets with more than 3 doors, please order following sets: 1 set for 1 door and 1 set
for 2 doors. The pitch length of the running gears must be min. 245 mm (9 5/8") with soft closing mechanism on one side and min. 425 mm (16
3/4") with soft closing mechanism on both sides. 7

→ Tracks and Accessories

Description Min. cabinet top thickness Material Finish Length Item No.
Single top running track, 2.5 m
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
for press fitting and glue mill, (8' 2 7/16") 402.33.642
mounting into groove 16 mm Glue mounting: Min. 19 (3/4"); Aluminum visible areas
(5/8") or for screw mounting Screw mounting: Min. 30 (1 3/16") grooved
with countersunk head screws 3.5 m 402.33.643
3 mm (1/8") (11' 5 13/16")
Double top running track, 2.5 m
for press fitting and glue (8' 2 7/16") 402.33.600
mounting into groove 16 mm Glue mounting: Min. 19 (3/4"); mill,
(5/8") or for screw mounting Screw mounting: Min. 30 (1 3/16") Aluminum visible areas Sliding and Roller Shutter Systems
with countersunk head screws grooved 3.5 m 402.33.601
Ø3.5 mm (1/8") (11' 5 13/16")
Single top running track, 2.5 m 402.30.642
for screw mounting with – Aluminum silver colored (8' 2 7/16")
countersunk head screws anodized 3.5 m
Ø3.5 mm (1/8") (11' 5 13/16") 402.30.643
Front: silver 2.5 m 402.33.700
Glass door profile, colored, (8' 2 7/16")
for top and bottom – Aluminum anodized 3.5 m
Back: brushed (11' 5 13/16") 402.33.701

www.hafele.com/us FC 7.75
