Sliding and Roller Shutter Systems
Coplanar Doors

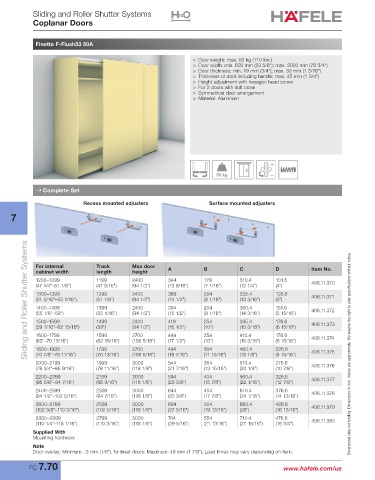

Finetta F-Flush53 50A

> Door weight: max. 50 kg (110 lbs.)
> Door width: min. 600 mm (23 5/8”); max. 2000 mm (78 3/4”)
> Door thickness: min. 19 mm (3/4"); max. 30 mm (1 3/16”)
> Thickness of door including handle: max. 45 mm (1 3/4")
> Height adjustment with hexagon head screw
> For 2 doors with soft close
> Symmetrical door arrangement
> Material: Aluminum

50

→ Complete Set

Recess mounted adjusters Surface mounted adjusters
7

Sliding and Roller Shutter Systems

For internal Track Max door
cabinet width length height A B C D Item No.
1200–1299 1199 2400 344 179 310.4 101.6 406.11.370
(47 1/4"–51 1/8") (47 3/16") (94 1/2") (13 9/16") (7 1/16") (12 1/4") (4")
1300–1399 1299 2400 369 204 335.4 126.6
(51 3/16"–55 1/16") (51 1/8") (94 1/2”) (14 1/2") (8 1/16") (13 3/16") (5") 406.11.371
1400–1499 1399 2400 394 204 360.4 151.6 406.11.372
(55 1/8"–59") (55 1/16") (94 1/2”) (15 1/2") (8 1/16") (14 3/16") (5 15/16")
1500–1599 1499 2400 419 254 385.4 176.6
(59 1/16"–62 15/16") (59") (94 1/2”) (16 1/2") (10") (15 3/16") (6 15/16") 406.11.373
1600–1799 1599 2700 444 254 410.4 176.6 406.11.374
(63"–70 13/16") (62 15/16") (106 5/16") (17 1/2") (10") (16 3/16") (6 15/16")
1800–1999 1799 2700 494 304 460.4 226.6
(70 7/8"–78 11/16") (70 13/16") (106 5/16”) (19 7/16") (11 15/16") (18 1/8") (8 15/16") 406.11.375 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2000–2199 1999 3000 544 354 510.4 276.6 406.11.376
(78 3/4"–86 9/16") (78 11/16") (118 1/8") (21 7/16") (13 15/16") (20 1/8") (10 7/8")
2200–2399 2199 3000 594 404 560.4 326.6
(86 5/8"–94 7/16") (86 9/16") (118 1/8") (23 3/8") (15 7/8") (22 1/16") (12 7/8") 406.11.377
2400–2599 2399 3000 644 454 610.4 376.6 406.11.378
(94 1/2"–102 5/16") (94 7/16") (118 1/8") (25 3/8") (17 7/8") (24 1/16") (14 13/16")
2600–2799 2599 3000 694 504 660.4 426.6
(102 3/8"–110 3/16") (102 5/16") (118 1/8") (27 5/16") (19 13/16") (26") (16 13/16") 406.11.379
2800–2999 2799 3000 744 554 710.4 476.6 406.11.380
(110 1/4"–118 1/16") (110 3/16") (118 1/8") (29 5/16") (21 13/16") (27 15/16") (18 3/4")
Supplied With
Mounting hardware
Note
Door overlay: Minimum: -3 mm (1/8"), for Inset doors; Maximum: 48 mm (1 7/8"); Lead times may vary depending on item.
FC 7.70 www.hafele.com/us
