Sliding and Roller Shutter Systems
Coplanar Doors

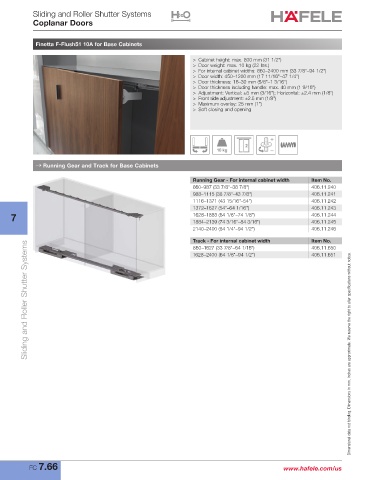

Finetta F-Flush51 10A for Base Cabinets

> Cabinet height: max. 800 mm (31 1/2")
> Door weight: max. 10 kg (22 lbs.)
> For internal cabinet widths: 860–2400 mm (33 7/8"–94 1/2")
> Door width: 450–1200 mm (17 11/16"–47 1/4")
> Door thickness: 16–30 mm (5/8"–1 3/16")
> Door thickness including handle: max. 40 mm (1 9/16")
> Adjustment: Vertical: ±5 mm (3/16"); Horizontal: ±2.4 mm (1/8")
> Front side adjustment: ±2.5 mm (1/8")
> Maximum overlay: 25 mm (1")
> Soft closing and opening

→ Running Gear and Track for Base Cabinets

Running Gear - For internal cabinet width Item No.
860–987 (33 7/8"–38 7/8") 406.11.240
988–1115 (38 7/8"–43 7/8") 406.11.241
1116–1371 (43 15/16"–54") 406.11.242
1372–1627 (54"–64 1/16") 406.11.243
7 1628–1883 (64 1/8"–74 1/8") 406.11.244
1884–2139 (74 3/16"–84 3/16")
406.11.245
2140–2400 (84 1/4"–94 1/2") 406.11.246
Track - For internal cabinet width Item No.
Sliding and Roller Shutter Systems
860–1627 (33 7/8"–64 1/16") 406.11.650
1628–2400 (64 1/8"–94 1/2") 406.11.651 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 7.66 www.hafele.com/us
