Sliding and Roller Shutter Systems
Coplanar Doors

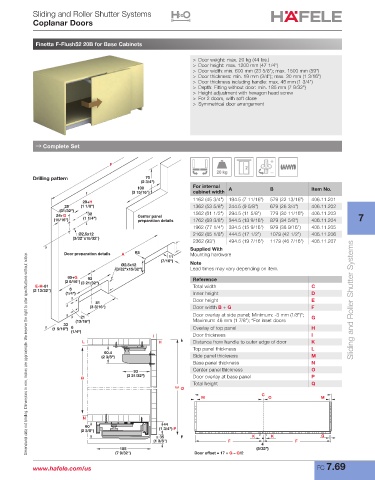

Finetta F-Flush52 20B for Base Cabinets

> Door weight: max. 20 kg (44 lbs.)
> Door height: max. 1200 mm (47 1/4")
> Door width: min. 600 mm (23 5/8"); max. 1500 mm (59")
> Door thickness: min. 19 mm (3/4"); max. 30 mm (1 3/16")
> Door thickness including handle: max. 45 mm (1 3/4")
> Depth: Fitting without door: min. 185 mm (7 9/32")
> Height adjustment with hexagon head screw
> For 2 doors, with soft close
> Symmetrical door arrangement

→ Complete Set

F

Drilling pattern 70
(2 3/4")
100 For internal A B Item No.
(3 15/16") cabinet width
1162 (45 3/4") 194.5 (7 11/16") 579 (22 13/16") 406.11.201
29+H
25 (1 1/8") 1362 (53 5/8") 244.5 (9 5/8") 679 (26 3/4") 406.11.202
(31/32")
24+G 32 Center panel 1562 (61 1/2") 294.5 (11 5/8") 779 (30 11/16") 406.11.203 7
(15/16") (1 1/4") preparation details 1762 (69 3/8") 344.5 (13 9/16") 879 (34 5/8") 406.11.204
1962 (77 1/4") 394.5 (15 9/16") 979 (38 9/16") 406.11.205
Ø2.5x12 2162 (85 1/8") 444.5 (17 1/2") 1079 (42 1/2") 406.11.206
(3/32"x15/32")
2362 (93") 494.5 (19 7/16") 1179 (46 7/16") 406.11.207
Supplied With
Door preparation details A R5 11 Mounting hardware
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(7/16")
Ø2.5x12 Note
(3/32"x15/32") Lead times may vary depending on item.
65+G 93 Reference
(2 9/16") (3 21/32")
E-H-61 Total width C
(2 13/32") 6
(1/4") Inner height D
81 Door height E Sliding and Roller Shutter Systems
(3 3/16") Door width B + G F
Door overlay at side panel; Minimum: -3 mm (1/8")*;
21 G
(13/16") Maximum: 48 mm (1 7/8"); *For inset doors
33
(1 5/16") 6 Overlay of top panel H
(1/4")
I Door thickness I
L H Distance from handle to outer edge of door K
Top panel thickness L
60.4
(2 3/8") Side panel thickness M
Base panel thickness N
93 Center panel thickness O
(3 21/32") Door overlay at base panel P
D
Total height Q
E Q
C
M O M

N
44
60 (1 3/4") P
(2 3/8")
≥ 35 K K G
(1 3/8") F F
4
185 (5/32")
(7 9/32") Door offset = 17 + G – O/2
www.hafele.com/us FC 7.69
