Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

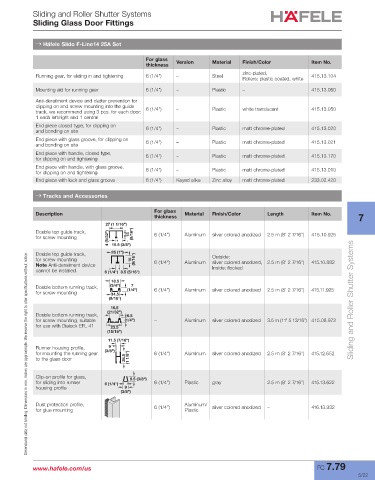

→ Häfele Slido F-Line14 25A Set

For glass Version Material Finish/Color Item No.
thickness
zinc-plated,
Running gear, for sliding in and tightening 6 (1/4") – Steel Rollers: plastic coated, white 415.13.104

Mounting aid for running gear 6 (1/4") – Plastic – 415.13.060
Anti-derailment device and clatter prevention for
clipping on and screw mounting into the guide
track, we recommend using 3 pcs. for each door: 6 (1/4") – Plastic white translucent 415.13.050
1 each left/right and 1 central
End piece closed type, for clipping on 6 (1/4") – Plastic matt chrome-plated 415.13.020
and bonding on site
End piece with glass groove, for clipping on
and bonding on site 6 (1/4") – Plastic matt chrome-plated 415.13.021
End piece with handle, closed type, 6 (1/4") – Plastic matt chrome-plated 415.13.170
for clipping on and tightening
End piece with handle, with glass groove,
for clipping on and tightening 6 (1/4") – Plastic matt chrome-plated 415.13.010
End piece with lock and glass groove 6 (1/4") Keyed alike Zinc alloy matt chrome-plated 233.02.420

→ Tracks and Accessories

For glass
Description thickness Material Finish/Color Length Item No. 7
27 (1 1/16")
Double top guide track, 15
for screw mounting 4 (5/32") 10.5 (3/8") (9/16") 6 (1/4") Aluminum silver colored anodized 2.5 m (8' 2 7/16") 415.10.925

Double top guide track, 25 (1")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
for screw mounting 15 (9/16") Outside:
Note Anti-derailment device 6 (1/4") Aluminum silver colored anodized, 2.5 m (8' 2 7/16") 415.10.882
cannot be installed. 6 (1/4") 8.5 (5/16") Inside: flocked
18.5
Double bottom running track, (3/4") 7
for screw mounting 14.5 (1/4") 6 (1/4") Aluminum silver colored anodized 2.5 m (8' 2 7/16") 415.11.925
(9/16") Sliding and Roller Shutter Systems
16.5
Double bottom running track, (21/32") 6.5
for screw mounting, suitable (1/4") – Aluminum silver colored anodized 3.5 m (11' 5 13/16") 415.08.972
for use with Dialock EFL 41 23.5
(15/16")
11.5 (7/16")
Runner housing profile, 9
for mounting the running gear (3/8") 6 (1/4") Aluminum silver colored anodized 2.5 m (8' 2 7/16") 415.12.652
to the glass door 28.5 (1 1/8")

Clip-on profile for glass, 9.5 (3/8")
for sliding into runner 6 (1/4") 6 (1/4") Plastic gray 2.5 m (8' 2 7/16") 415.13.622
housing profile 9
(3/8")

Dust protection profile, 6 (1/4") Aluminum/ silver colored anodized – 416.13.932
for glue mounting Plastic

www.hafele.com/us FC 7.79
5/22
