Sliding and Roller Shutter Systems
Accessories

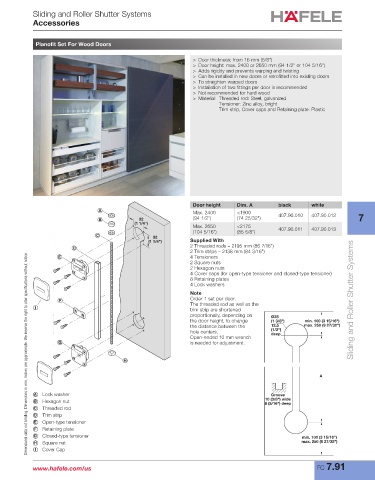

Planofit Set For Wood Doors

> Door thickness: from 16 mm (5/8")
> Door height: max. 2400 or 2650 mm (94 1/2" or 104 5/16")
> Adds rigidity and prevents warping and twisting
> Can be installed in new doors or retrofitted into existing doors
> To straighten warped doors
> Installation of two fittings per door is recommended
> Not recommended for hard wood
> Material: Threaded rod: Steel, galvanized
Tensioner: Zinc alloy, bright
Trim strip, Cover caps and Retaining plate: Plastic

Door height Dim. A black white
Max. 2400 <1900 407.90.010 407.90.012
32 (94 1/2") (74 25/32") 7
(1 1/4")
Max. 2650 <2175
(104 5/16") (85 5/8") 407.90.011 407.90.013
32
(1 1/4") Supplied With
2 Threaded rods – 2195 mm (86 7/16")
2 Trim strips – 2138 mm (84 3/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
4 Tensioners
2 Square nuts
2 Hexagon nuts
4 Cover caps (for open-type tensioner and closed-type tensioner)
8 Retaining plates
4 Lock washers
Note
Order 1 set per door. Sliding and Roller Shutter Systems
The threaded rod as well as the
I trim strip are shortened
proportionally, depending on Ø35
the door height, to change (1 3/8") min. 100 (3 15/16")
the distance between the 12.5 max. 250 (9 27/32")
hole centers. (1/2")
deep
Open-ended 10 mm wrench
is needed for adjustment.

A

A Lock washer Groove
10 (3/8") wide
B Hexagon nut 8 (5/16") deep
C Threaded rod
D Trim strip
E Open-type tensioner
F Retaining plate
G Closed-type tensioner min. 100 (3 15/16")
H Square nut max. 250 (9 27/32")
I Cover Cap

www.hafele.com/us FC 7.91
