Sliding and Roller Shutter Systems
Accessories

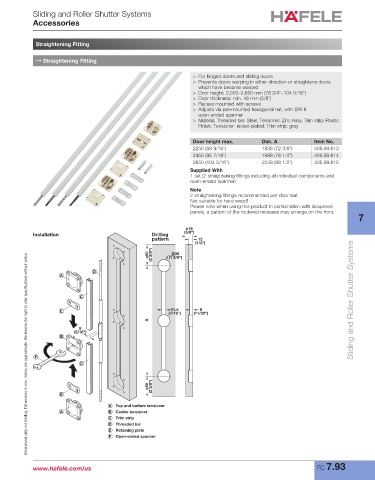

Straightening Fitting

→ Straightening Fitting

> For hinged doors and sliding doors
> Prevents doors warping in either direction or straightens doors
which have become warped
> Door height: 2,000–2,650 mm (78 3/4"–104 5/16")
> Door thickness: min. 16 mm (5/8")
> Recess mounted with screws
> Adjusts via pre-mounted hexagonal nut, with SW 8
open-ended spanner
> Material: Threaded bar: Steel; Tensioner: Zinc Alloy; Trim strip: Plastic
Finish: Tensioner: nickel-plated; Trim strip: gray

Door height max. Dim. A Item No.
2250 (88 9/16") 1838 (72 3/8") 406.99.613
2450 (96 7/16") 1988 (78 1/4") 406.99.614
2650 (104 5/16") 2248 (88 1/2") 406.99.615
Supplied With
1 set (2 straightening fittings including all individual components and
open-ended spanner)
Note
2 straightening fittings recommended per door leaf.
Not suitable for hard wood!
Please note when using this product in combination with lacquered
panels, a pattern of the routered recesses may emerge on the front.
7
≥16
Installation Drilling (5/8")
pattern 12
(1/2")
≥60 (2 3/8") (1 3/8")
Ø35
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

11.5 9 Sliding and Roller Shutter Systems
(7/16") (11/32")
A
8
(5/16")

≥60 (2 3/8")

A Top and bottom tensioner
B Centre tensioner
C Trim strip
D Threaded bar
E Retaining plate
F Open-ended spanner

www.hafele.com/us FC 7.93
