P. 623

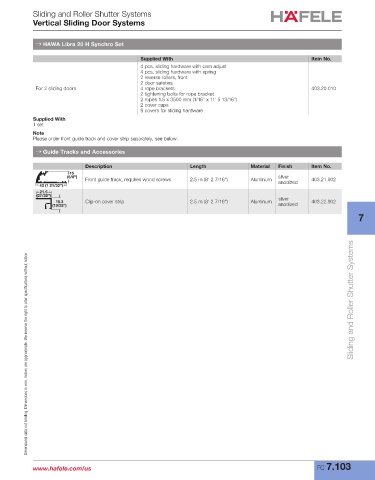

Sliding and Roller Shutter Systems
Vertical Sliding Door Systems
→ HAWA Libra 20 H Synchro Set
Supplied With Item No.
4 pcs. sliding hardware with cam adjust
4 pcs. sliding hardware with spring
2 reverse rollers, front
2 door safeties
For 2 sliding doors 4 rope brackets 403.20.010
2 tightening bolts for rope bracket
2 ropes 1.5 x 3500 mm (1/16" x 11' 5 13/16")
2 cover caps
8 covers for sliding hardware
Supplied With
1 set
Note
Please order front guide track and cover strip separately, see below.
→ Guide Tracks and Accessories
Description Length Material Finish Item No.
16
(5/8") silver
Front guide track, requires wood screws 2.5 m (8' 2 7/16") Aluminum anodized 403.21.902
42 (1 21/32")
21.5
(27/32") silver
15.3 Clip-on cover strip 2.5 m (8' 2 7/16") Aluminum 403.22.902
(19/32") anodized
7
Sliding and Roller Shutter Systems
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
