Sliding and Roller Shutter Systems
Lateral Swing Fittings

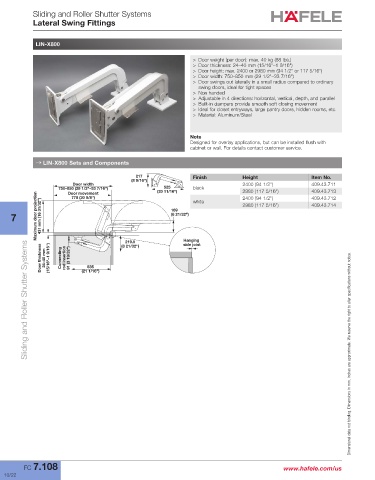

LIN-X800

> Door weight (per door): max. 40 kg (88 lbs.)
> Door thickness: 24–40 mm (15/16"–1 9/16")
> Door height: max. 2400 or 2980 mm (94 1/2" or 117 5/16")
> Door width: 750–850 mm (29 1/2"–33 7/16")
> Door swings out laterally in a small radius compared to ordinary
swing doors, ideal for tight spaces
> Non handed
> Adjustable in 4 directions: horizontal, vertical, depth, and parallel
> Built-in dampers provide smooth soft closing movement
> Ideal for closet entryways, large pantry doors, hidden rooms, etc.
> Material: Aluminum/Steel

Note
Designed for overlay applications, but can be installed flush with
cabinet or wall. For details contact customer service.
→ LIN-X800 Sets and Components

217 Finish Height Item No.
(8 9/16")
Door width 2400 (94 1/2") 409.43.711
525
750–850 (29 1/2"–33 7/16") (6 1/8") 120 (20 11/16") 160 black 2980 (117 5/16") 409.43.713
155.5
Door movement
Maximum door projection (4 3/4") (3 15/16") 169 (3 9/16") (2 5/16") 2980 (117 5/16") 409.43.714
2400 (94 1/2")
778 (30 5/8")
409.43.712
(6 5/16")
white
100
110
90
58
(4 5/16")
7 431 mm (16 31/32") (3 3/4") (3 15/16") (3 1/8")
(6 21/32")
100
80
96
Hanging
219.5 side joint
Sliding and Roller Shutter Systems
(8 21/32")
Door thickness 24–40 mm (15/16"–1 9/16") Connecting rod insertion 91 (3 19/32") (21 1/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
535

FC 7.108 www.hafele.com/us
