Sliding and Roller Shutter Systems
Lateral Swing Fittings

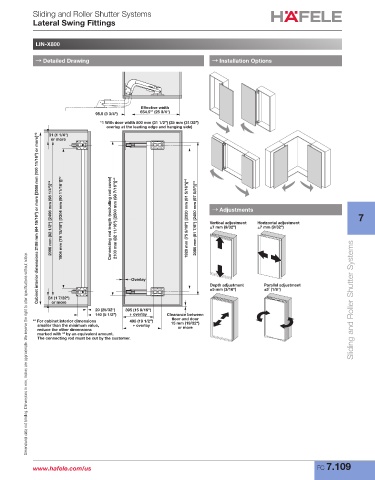

LIN-X800

→ Detailed Drawing → Installation Options

Effective width
1
95.5 (3 3/4") 654.5* (25 3/4")
*1 With door width 800 mm (31 1/2") (25 mm (31/32")
overlay at the leading edge and hanging side)
Cabinet interior dimensions 2158 mm (84 15/16") or more [2558 mm (100 11/16") or more]* 2
31 (1 1/4")
or more

2096 mm (82 1/2") [2496 mm (98 1/4")]* 2 1904 mm (74 15/16") [2304 mm (90 11/16")]* 2 Connecting rod length (excluding rod cover) 2100 mm (82 11/16") [2500 mm (98 7/16")]* 2 1920 mm (75 9/16") [2320 mm (91 5/16")]* 2 2080 mm (81 7/8") [2480 mm (97 5/8")]* 2 Vertical adjustment Horizontal adjustment 7

→ Adjustments

±7 mm (9/32")
±7 mm (9/32")

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Overlay
Depth adjustment Parallel adjustment
±5 mm (3/16") ±3˚ (1/8")
31 (1 7/32")
or more Sliding and Roller Shutter Systems
20 (25/32") 395 (15 9/16")
140 (5 1/2") + overlay Clearance between
floor and door
2
* For cabinet interior dimensions 495 (19 1/2") 15 mm (19/32")
smaller than the minimum value, + overlay or more
reduce the other dimensions
2
marked with * by an equivalent amount.
The connecting rod must be cut by the customer.

www.hafele.com/us FC 7.109
