Sliding and Roller Shutter Systems
Pivoting Pocket Doors

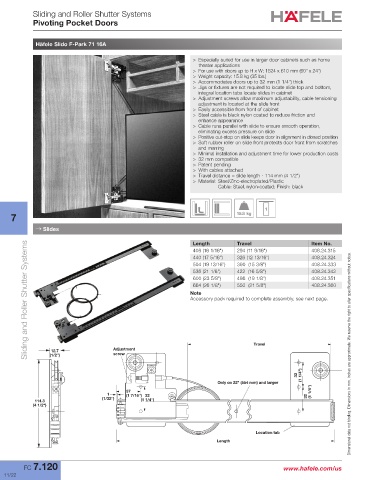

Häfele Slido F-Park 71 16A

> Especially suited for use in larger door cabinets such as home
theater applications
> For use with doors up to H x W: 1524 x 610 mm (60" x 24")
> Weight capacity: 15.8 kg (35 lbs.)
> Accommodates doors up to 32 mm (1 1/4") thick
> Jigs or fixtures are not required to locate slide top and bottom,
integral location tabs locate slides in cabinet
> Adjustment screws allow maximum adjustability, cable tensioning
adjustment is located at the slide front
> Easily accessible from front of cabinet
> Steel cable is black nylon coated to reduce friction and
enhance appearance
> Cable runs parallel with slide to ensure smooth operation,
eliminating excess pressure on slide
> Positive out-stop on slide keeps door in alignment in closed position
> Soft rubber roller on slide front protects door front from scratches
and marring
> Minimal installation and adjustment time for lower production costs
> 32 mm compatible
> Patent pending
> With cables attached
> Travel distance = slide length - 114 mm (4 1/2")
> Material: Steel/Zinc-electroplated/Plastic
Cable: Steel, nylon-coated; Finish: black

7 15.8

→ Slides

Sliding and Roller Shutter Systems
Length Travel Item No.
408 (16 1/16") 294 (11 9/16") 408.24.315
440 (17 5/16") 326 (12 13/16") 408.24.324
504 (19 13/16") 390 (15 3/8") 408.24.333
536 (21 1/8") 422 (16 5/8") 408.24.342
600 (23 5/8") 486 (19 1/8") 408.24.351
664 (26 1/8") 550 (21 5/8") 408.24.360
Note
Accessory pack required to complete assembly, see next page.

Travel
12.7 Adjustment
(1/2") screw Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

32 (1 1/4")
Only on 22" (554 mm) and larger
37 (1 1/4")
1 (1 7/16") 32
(1/32") 32
114.3 (1 1/4")
(4 1/2")

Location tab
Length

FC 7.120 www.hafele.com/us
11/22
