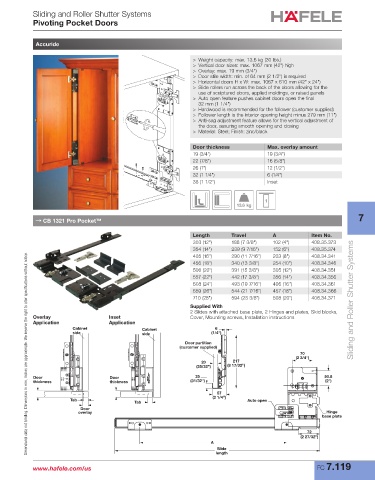

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

Accuride

> Weight capacity: max. 13.6 kg (30 lbs.)
> Vertical door sizes: max. 1067 mm (42") high
> Overlay: max. 19 mm (3/4")
> Door stile width: min. of 64 mm (2 1/2") is required
> Horizontal doors H x W: max. 1067 x 610 mm (42" x 24")
> Slide rollers run across the back of the doors allowing for the
use of sculptured doors, applied moldings, or raised panels
> Auto open feature pushes cabinet doors open the final
32 mm (1 1/4")
> Hardwood is recommended for the follower (customer supplied)
> Follower length is the interior opening height minus 279 mm (11")
> Anti-sag adjustment feature allows for the vertical adjustment of
the door, assuring smooth opening and closing
> Material: Steel; Finish: zinc/black

Door thickness Max. overlay amount
19 (3/4") 19 (3/4")
22 (7/8") 16 (5/8")
26 (1") 12 (1/2")
32 (1 1/4") 6 (1/4")
38 (1 1/2") Inset

13.6
7
→ CB 1321 Pro Pocket™

Length Travel A Item No.
303 (12") 188 (7 3/8") 102 (4") 408.35.373
354 (14") 239 (9 7/16") 152 (6") 408.35.374
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
405 (16") 290 (11 7/16") 203 (8") 408.34.341
456 (18") 340 (13 3/8") 254 (10") 408.34.346
506 (20") 391 (15 3/8") 305 (12") 408.34.351
557 (22") 442 (17 3/8") 356 (14") 408.34.356
608 (24") 493 (19 7/16") 406 (16") 408.34.361
659 (26") 544 (21 7/16") 457 (18") 408.34.366
710 (28") 594 (23 3/8") 508 (20") 408.34.371 Sliding and Roller Shutter Systems
Supplied With
2 Slides with attached base plate, 2 Hinges and plates, Skid blocks,
Overlay Inset Cover, Mounting screws, Installation instructions
Application Application
Cabinet Cabinet 6
side side (1/4")
Door partition
(customer supplied)
70
(2 3/4")
20 217
(25/32") (8 17/32")
Door Door 25 50.8
thickness thickness (31/32") (2")

57
(2 1/4")
Tab Tab Auto open
Door
overlay Hinge
base plate

72
(2 27/32")
A
Slide
length

www.hafele.com/us FC 7.119
