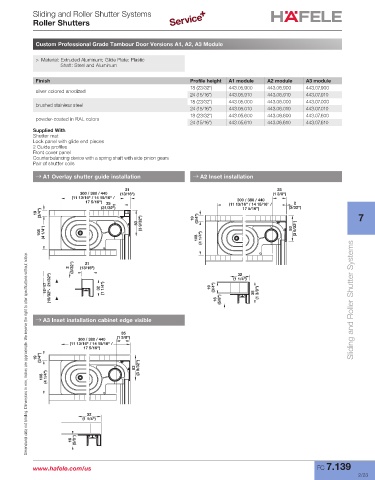

Sliding and Roller Shutter Systems
Roller Shutters

Custom Professional Grade Tambour Door Versions A1, A2, A3 Module

> Material: Extruded Aluminum; Glide Plate: Plastic
Shaft: Steel and Aluminum

Finish Profile height A1 module A2 module A3 module
18 (23/32") 443.05.900 443.06.900 443.07.900
silver colored anodized
24 (15/16") 443.05.910 443.06.910 443.07.910
18 (23/32") 443.05.000 443.06.000 443.07.000
brushed stainless steel
24 (15/16") 443.05.010 443.06.010 443.07.010
18 (23/32") 443.05.600 443.06.600 443.07.600
powder-coated in RAL colors
24 (15/16") 443.05.610 443.06.610 443.07.610
Supplied With
Shutter mat
Lock panel with glide end pieces
2 Guide profiles
Front cover panel
Counterbalancing device with a spring shaft with side pinion gears
Pair of shutter coils
→ A1 Overlay shutter guide installation → A2 Inset installation

21 35
300 / 380 / 440 (13/16") (1 3/8")
(11 13/16" / 14 15/16" / 300 / 380 / 440
17 5/16") 25 (11 13/16" / 14 15/16" / 2
(31/32") 17 5/16") (3/32")
(3/4")
19 (3/4") 7
83 (3 9/32") 19 (3 9/32")
108 (4 1/4") 108 (4 1/4") 83

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
21
(3/32") (13/16")
2 32

15 17 (19/32" 21/32") 32 (1 1/4") 19 (3/4") 16 (5/8") (1 1/4") 35 (1 3/8") Sliding and Roller Shutter Systems

→ A3 Inset installation cabinet edge visible

35
300 / 380 / 440 (1 3/8")
(11 13/16" / 14 15/16" /
17 5/16")
(3/4")
19
83 (3 9/32")
108 (4 1/4")

32
(1 1/4")

16 (5/8")

www.hafele.com/us FC 7.139
2/23
