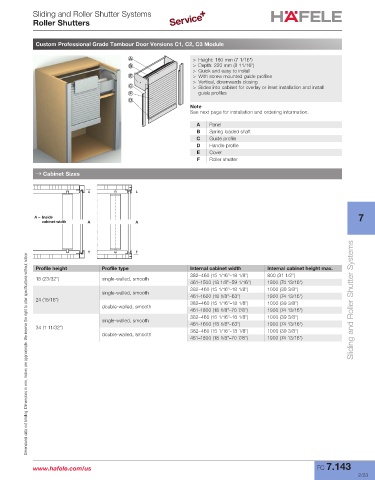

Sliding and Roller Shutter Systems
Roller Shutters

Custom Professional Grade Tambour Door Versions C1, C2, C3 Module

> Height: 180 mm (7 1/16")
> Depth: 220 mm (8 11/16")
> Quick and easy to install
> With screw mounted guide profiles
> Vertical, downwards closing
> Slides into cabinet for overlay or inset installation and install
guide profiles

Note
See next page for installation and ordering information.

A Panel
B Spring loaded shaft
C Guide profile
D Handle profile
E Cover
F Roller shutter

→ Cabinet Sizes

A = Inside 7
cabinet width

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Profile height Profile type Internal cabinet width Internal cabinet height max.
382–460 (15 1/16"–18 1/8") 800 (31 1/2")
18 (23/32") single-walled, smooth
461–1500 (18 1/8"–59 1/16") 1900 (74 13/16")
382–460 (15 1/16"–18 1/8") 1000 (39 3/8")
single-walled, smooth
24 (15/16") 461–1600 (18 1/8"–63") 1900 (74 13/16") Sliding and Roller Shutter Systems
1000 (39 3/8")
382–460 (15 1/16"–18 1/8")
double-walled, smooth
461–1800 (18 1/8"–70 7/8") 1900 (74 13/16")
382–460 (15 1/16"–18 1/8") 1000 (39 3/8")
single-walled, smooth 461–1600 (18 1/8"–63") 1900 (74 13/16")
34 (1 11/32") 382–460 (15 1/16"–18 1/8") 1000 (39 3/8")
double-walled, smooth
461–1800 (18 1/8"–70 7/8") 1900 (74 13/16")
