Sliding and Roller Shutter Systems
Roller Shutters

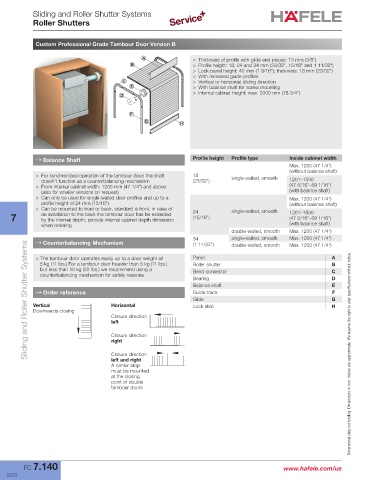

Custom Professional Grade Tambour Door Version B

> Thickness of profile with glide end pieces: 10 mm (3/8")
> Profile height: 18, 24 and 34 mm (23/32", 15/16" and 1 11/32")
> Lock panel height: 40 mm (1 9/16"); thickness: 18 mm (23/32")
> With recessed guide profiles
> Vertical or horizontal sliding direction
> With balance shaft for screw mounting
> Internal cabinet height: max. 2000 mm (78 3/4")

→ Balance Shaft Profile height Profile type Inside cabinet width
Max. 1200 (47 1/4")
(without balance shaft)
> For synchronized operation of the tambour door; the shaft 18 single-walled, smooth
doesn’t function as a counterbalancing mechanism (23/32") 1201–1500
> From internal cabinet width: 1200 mm (47 1/4") and above (47 5/16"–59 1/16")
(also for smaller versions on request) (with balance shaft)
> Can only be used for single-walled door profiles and up to a Max. 1200 (47 1/4")
profile height of 24 mm (15/16") (without balance shaft)
> Can be mounted to front or back, standard is front, in case of 24 single-walled, smooth
7 an installation to the back the tambour door has be extended (15/16") 1201–1500
(47 5/16"–59 1/16")
by the internal depth; provide internal cabinet depth dimension
when ordering (with balance shaft)
double-walled, smooth Max. 1200 (47 1/4")
34 single-walled, smooth Max. 1200 (47 1/4")
→ Counterbalancing Mechanism (1 11/32") double-walled, smooth Max. 1200 (47 1/4")
Sliding and Roller Shutter Systems
> The tambour door operates easily up to a door weight of Panel A
5 kg (11 lbs.) For a tambour door heavier than 5 kg (11 lbs.) Roller shutter B
but less than 10 kg (22 lbs.) we recommend using a Bend connector C
counterbalancing mechanism for safety reasons
Bearing D
Balance shaft E
→ Order reference Guide track F
Glide G
Vertical Horizontal Lock strip H
Downwards closing
Closure direction
left

Closure direction
right

Closure direction Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
left and right
A center stop
must be mounted
at the closing
point of double
tambour doors
