Drawer Slides
Double-Wall Drawer System

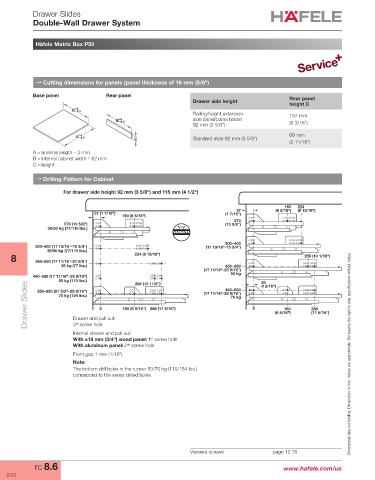

Häfele Matrix Box P50

→ Cutting dimensions for panels (panel thickness of 16 mm (5/8")

Base panel Rear panel
Drawer side height Rear panel
height C
Railing/height extension 157 mm
side panel/panel holder
92 mm (3 5/8") (6 3/16")
69 mm
Standard slide 92 mm (3 5/8")
(2 11/16")
A = nominal length – 3 mm
B = internal cabinet width – 62 mm
C = height

→ Drilling Pattern for Cabinet
For drawer side height 92 mm (3 5/8") and 115 mm (4 1/2")

160 224
37 (6 5/16") (8 13/16")
37 (1 7/16") (1 7/16")
160 (6 5/16")
270
270 (10 5/8") (10 5/8")
35/50 kg (77/110 lbs.)
VARIANTA
300−400
300–400 (11 13/16"–15 3/4") (11 13/16"-15 3/4")
35/50 kg (77/110 lbs.)
8 450–550 (17 11/16"–21 5/8") 224 (8 13/16") 256 (10 1/16")
35 kg (77 lbs.) 450−650
(17 11/16"-25 9/16")
50 kg
450–650 (17 11/16"–25 9/16")
50 kg (110 lbs.) 256 (10 1/16") 450−650 20
Drawer Slides 70 kg (154 lbs.) 160 (6 5/16") 288 (11 5/16") (17 11/16"-25 9/16") (6 5/16") 288
(13/16")
550–650 (21 5/8"–25 9/16")
70 kg
160
(11 5/16")
Drawer and pull out:
3 screw hole
rd
Internal drawer and pull out:
With ≤19 mm (3/4") wood panel: 1 screw hole
st
With aluminum panel: 2 screw hole
nd
Front gap 1 mm (1/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Note:
The bottom drill holes in the runner 50/70 kg (110/154 lbs.)
correspond to the series drilled holes.

Varianta screws page 12.16
FC 8.6 www.hafele.com/us
