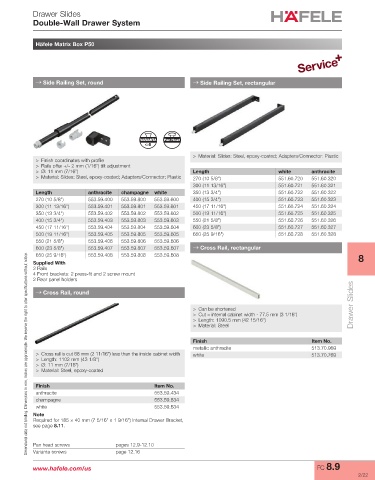

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box P50

→ Side Railing Set, round → Side Railing Set, rectangular

VARIANTA Pan Head
5
> Material: Slides: Steel, epoxy-coated; Adapters/Connector: Plastic
> Finish coordinates with profile
> Rails offer +/- 2 mm (1/16") tilt adjustment
> Ø: 11 mm (7/16") Length white anthracite
> Material: Slides: Steel, epoxy-coated; Adapters/Connector: Plastic 270 (10 5/8") 551.60.720 551.60.320
300 (11 13/16") 551.60.721 551.60.321
Length anthracite champagne white 350 (13 3/4") 551.60.722 551.60.322
270 (10 5/8") 553.59.400 553.59.800 553.59.600 400 (15 3/4") 551.60.723 551.60.323
300 (11 13/16") 553.59.401 553.59.801 553.59.601 450 (17 11/16") 551.60.724 551.60.324
350 (13 3/4") 553.59.402 553.59.802 553.59.602 500 (19 11/16") 551.60.725 551.60.325
400 (15 3/4") 553.59.403 553.59.803 553.59.603 550 (21 5/8") 551.60.726 551.60.326
450 (17 11/16") 553.59.404 553.59.804 553.59.604 600 (23 5/8") 551.60.727 551.60.327
500 (19 11/16") 553.59.405 553.59.805 553.59.605 650 (25 9/16") 551.60.728 551.60.328
550 (21 5/8") 553.59.406 553.59.806 553.59.606
600 (23 5/8") 553.59.407 553.59.807 553.59.607 → Cross Rail, rectangular
650 (25 9/16") 553.59.408 553.59.808 553.59.608 8
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Supplied With
2 Rails
4 Front brackets: 2 press-fit and 2 screw mount
2 Rear panel holders

→ Cross Rail, round

> Can be shortened Drawer Slides
> Cut = internal cabinet width - 77.5 mm (3 1/16")
> Length: 1090.5 mm (42 15/16")
> Material: Steel

Finish Item No.
metallic anthracite 513.70.969
> Cross rail is cut 68 mm (2 11/16") less than the inside cabinet width white 513.70.769
> Length: 1102 mm (43 1/8")
> Ø: 11 mm (7/16")
> Material: Steel, epoxy-coated

Finish Item No.
anthracite 553.59.434
champagne 553.59.834
white 553.59.634
Note
Required for 185 × 40 mm (7 5/16" x 1 9/16") Internal Drawer Bracket,
see page 8.11.

Pan head screws pages 12.9-12.10
Varianta screws page 12.16
