Drawer Slides
Double-Wall Drawer System

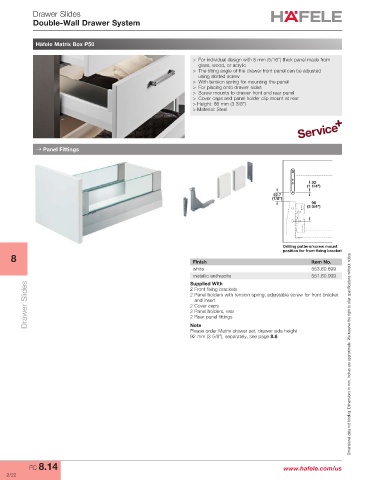

Häfele Matrix Box P50

> For individual design with 8 mm (5/16") thick panel made from
glass, wood, or acrylic
> The tilting angle of the drawer front panel can be adjusted
using slotted screw
> With tension spring for mounting the panel
> For placing onto drawer sides
> Screw mounts to drawer front and rear panel
> Cover caps and panel holder clip mount at rear
> Height: 86 mm (3 3/8")
> Material: Steel

→ Panel Fittings

32
(1 1/4")
22.7
(7/8")
96
(3 3/4")

Drilling pattern/screw mount
position for front fixing bracket
8 Finish Item No.
white 553.60.699
metallic anthracite 551.60.999
Drawer Slides 2 Panel holders with tension spring, adjustable screw for front bracket
Supplied With
2 Front fixing brackets
and insert
2 Cover caps
2 Panel holders, rear
2 Rear panel fittings
Note
Please order Matrix drawer set, drawer side height
92 mm (3 5/8"), separately, see page 8.8 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 8.14 www.hafele.com/us
2/22
