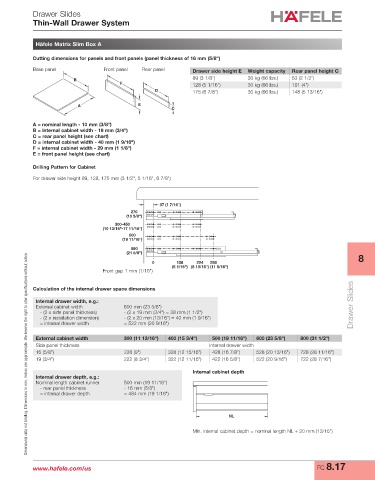

Page 681 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Thin-Wall Drawer System

Häfele Matrix Slim Box A

Cutting dimensions for panels and front panels (panel thickness of 16 mm (5/8")

Base panel Front panel Rear panel Drawer side height E Weight capacity Rear panel height C
B 89 (3 1/8") 30 kg (66 lbs.) 63 (2 1/2")
F 128 (5 1/16") 30 kg (66 lbs.) 101 (4")
D 175 (6 7/8") 30 kg (66 lbs.) 148 (5 13/16")

A E
C

A = nominal length - 10 mm (3/8")
B = internal cabinet width - 19 mm (3/4")
C = rear panel height (see chart)
D = internal cabinet width - 40 mm (1 9/16")
F = internal cabinet width - 29 mm (1 1/8")
E = front panel height (see chart)
Drilling Pattern for Cabinet

For drawer side height 89, 128, 175 mm (3 1/2", 5 1/16", 6 7/8")

37 (1 7/16")
270
(10 5/8")
300-450
(10 13/16"-17 11/16")
500
(19 11/16")
550
(21 5/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
0 128 224 288
(5 1/16") (8 13/16") (11 5/16")
Front gap 1 mm (1/16")
Calculation of the internal drawer space dimensions

Internal drawer width, e.g.:
External cabinet width 600 mm (23 5/8") Drawer Slides
- (2 x side panel thickness) - (2 x 19 mm (3/4") = 38 mm (1 1/2")
- (2 x installation dimension) - (2 x 20 mm (13/16") = 40 mm (1 9/16")
= internal drawer width = 522 mm (20 9/16")

External cabinet width 300 (11 13/16") 400 (15 3/4") 500 (19 11/16") 600 (23 5/8") 800 (31 1/2")
Side panel thickness Internal drawer width
16 (5/8") 228 (9") 328 (12 15/16") 428 (16 7/8") 528 (20 13/16") 728 (28 11/16")
19 (3/4") 222 (8 3/4") 322 (12 11/16") 422 (16 5/8") 522 (20 9/16") 722 (28 7/16")
Internal cabinet depth
Internal drawer depth, e.g.:
Nominal length cabinet runner 500 mm (19 11/16")
- rear panel thickness - 16 mm (5/8")
= internal drawer depth = 484 mm (19 1/16")

NL

Min. internal cabinet depth = nominal length NL + 20 mm (13/16")

www.hafele.com/us FC 8.17
