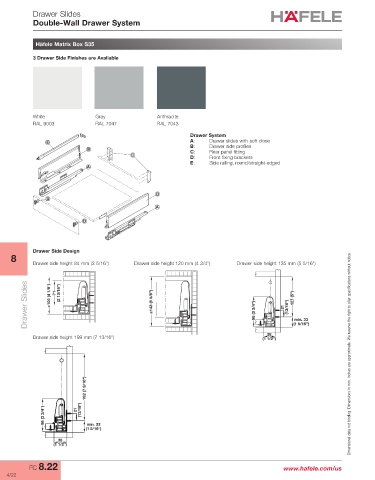

Drawer Slides
Double-Wall Drawer System
Häfele Matrix Box S35
3 Drawer Side Finishes are Available
White Gray Anthracite
RAL 9003 RAL 7047 RAL 7043
Drawer System
A: Drawer slides with soft close
B: Drawer side profiles
C: Rear panel fitting
D: Front fixing brackets
E: Side railing, round/straight-edged
Drawer Side Design
8
Drawer side height 84 mm (3 5/16") Drawer side height 120 mm (4 3/4") Drawer side height 135 mm (5 5/16")
Drawer Slides ≥105 (4 1/8") 71 (2 13/16") ≥143 (5 5/8") 96 (3 3/4") 21 (13/16") 127 (5") min. 33
38 (1 5/16")
Drawer side height 199 mm (7 13/16") (1 1/2") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
192 (7 9/16")
96 (3 3/4") 21 (13/16")
min. 33
(1 5/16")
38
(1 1/2")
