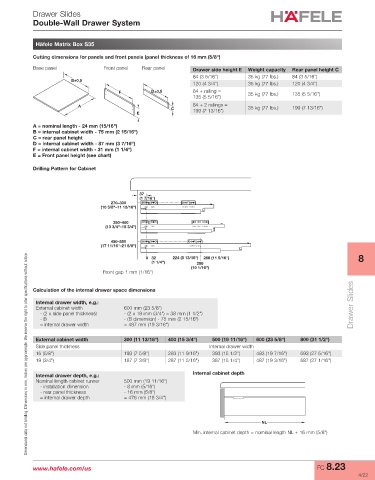

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box S35

Cutting dimensions for panels and front panels (panel thickness of 16 mm (5/8")
Base panel Front panel Rear panel Drawer side height E Weight capacity Rear panel height C
84 (3 5/16") 35 kg (77 lbs.) 84 (3 5/16")
B±0.5
120 (4 3/4") 35 kg (77 lbs.) 120 (4 3/4")
F D±0.5 84 + railing = 35 kg (77 lbs.) 135 (5 5/16")
135 (5 5/16")
A 84 + 2 railings =
C 199 (7 13/16") 35 kg (77 lbs.) 199 (7 13/16")
E
A = nominal length - 24 mm (15/16")
B = internal cabinet width - 75 mm (2 15/16")
C = rear panel height
D = internal cabinet width - 87 mm (3 7/16")
F = internal cabinet width - 31 mm (1 1/4")
E = Front panel height (see chart)

Drilling Pattern for Cabinet

37
(1 7/16")
270–300
(10 5/8"–11 13/16")

350–400
(13 3/4"–15 3/4")

450–550
(17 11/16"–21 5/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
32 224 (8 13/16") 288 (11 5/16") 8
(1 1/4") 256
(10 1/16")
Front gap 1 mm (1/16")

Calculation of the internal drawer space dimensions

Internal drawer width, e.g.:
External cabinet width 600 mm (23 5/8") Drawer Slides
- (2 x side panel thickness) - (2 x 19 mm (3/4") = 38 mm (1 1/2")
- B - (B dimension) - 75 mm (2 15/16")
= internal drawer width = 487 mm (19 3/16")

External cabinet width 300 (11 13/16") 400 (15 3/4") 500 (19 11/16") 600 (23 5/8") 800 (31 1/2")
Side panel thickness Internal drawer width
16 (5/8") 193 (7 5/8") 293 (11 9/16") 393 (15 1/2") 493 (19 7/16") 693 (27 5/16")
19 (3/4") 187 (7 3/8") 287 (11 5/16") 387 (15 1/4") 487 (19 3/16") 687 (27 1/16")

Internal drawer depth, e.g.: Internal cabinet depth
Nominal length cabinet runner 500 mm (19 11/16")
- installation dimension - 8 mm (5/16")
- rear panel thickness - 16 mm (5/8")
= internal drawer depth = 476 mm (18 3/4")

NL
Min. internal cabinet depth = nominal length NL + 16 mm (5/8")
