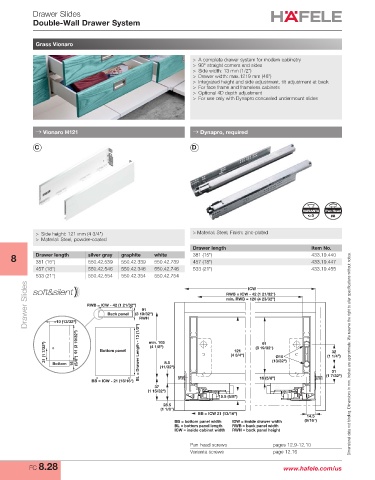

Drawer Slides
Double-Wall Drawer System

Grass Vionaro

> A complete drawer system for modern cabinetry
> 90° straight corners and sides
> Side width: 13 mm (1/2")
> Drawer width: max.1219 mm (48")
> Integrated height and side adjustment, tilt adjustment at back
> For face frame and frameless cabinets
> Optional 4D depth adjustment
> For use only with Dynapro concealed undermount slides

→ Vionaro H121 → Dynapro, required

C D

VARIANTA Pan Head
3 #8

> Side height: 121 mm (4 3/4") > Material: Steel; Finish: zinc-plated
> Material: Steel, powder-coated
Drawer length Item No.
8 Drawer length silver gray graphite white 381 (15") 433.19.440
433.19.447
457 (18")
550.42.739
381 (15")
550.42.539
550.42.339
457 (18") 550.42.546 550.42.346 550.42.746 533 (21") 433.19.455
533 (21") 550.42.554 550.42.354 550.42.754 ICW
Drawer Slides 10 (13/32") RWB = ICW - 42 (1 21/32") (3 19/32") RWB = ICW - 42 (1 21/32")
min. RWB = 120 (4 23/32")
91
Back panel
RWH

91
31 (1 7/32") Bottom 16 91 (3 19/32") (5/8") Bottom panel BL = Drawer Length - 13 (1/2") min. 105 8.5 (4 3/4") (3 19/32") (13/32") (1 1/4") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(4 1/8")
121
32
Ø10
31
BB = ICW - 21 (13/16") (11/32") 16 (5/8") (1 7/32")
37
(1 15/32")
15.5 (5/8")
28.5
(1 1/8")
BB = ICW 21 (13/16")
14.5
BB = bottom panel width IDW = inside drawer width (9/16")
BL = bottom panel length RWB = back panel width
ICW = inside cabinet width RWH = back panel height
Pan head screws pages 12.9-12.10
Varianta screws page 12.16
