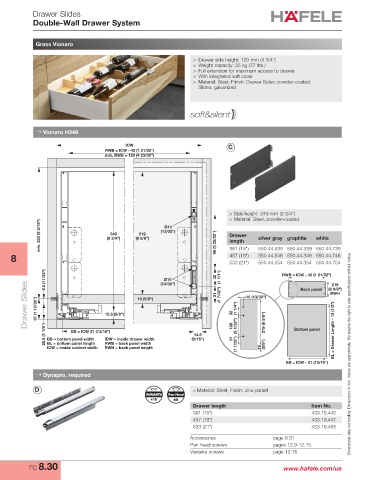

Drawer Slides
Double-Wall Drawer System

Grass Vionaro

> Drawer side height: 120 mm (4 3/4")
> Weight capacity: 35 kg (77 lbs.)
> Full extension for maximum access to drawer
> With integrated soft close
> Material: Steel; Finish: Drawer Sides: powder-coated;
Slides: galvanized

→ Vionaro H249

ICW C
RWB = ICW - 42 (1 21/32")
min. RWB = 120 (4 23/32")

> Side height: 249 mm (9 3/4")
> Material: Steel, powder-coated
min. 223 (9 3/16") (9 3/4") (8 5/8") (13/32") 96 (3 25/32") Drawer silver gray graphite white
Ø10
219
249
length

550.44.546 550.44.346 550.44.746
8 381 (15") 550.44.539 550.44.339 550.44.739
457 (18")
550.44.554 550.44.354 550.44.754
533 (21")
8.5 (11/32") (13/32") 32 (1 1/4") RWB = ICW - 42 (1 21/32") 219
Ø10
Drawer Slides 37 (1 15/32") 15.5 (5/8") 16 (5/8") 31 (1 7/32") 32 (1 1/4") 10 (13/32") RWH
(8 5/8")
Back panel

28.5 (1 1/8") BB = bottom panel width IDW = inside drawer width (9/16") 128 31 (5 1/32") 219 (8 5/8") Bottom panel BL = Drawer Length - 13 (1/2")
BB = ICW 21 (13/16")
14.5
BL = bottom panel length
RWH = back panel height
ICW = inside cabinet width RWB = back panel width (1 7/32") 16 (5/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
BB = ICW - 21 (13/16")

→ Dynapro, required

D > Material: Steel; Finish: zinc-plated
VARIANTA Pan Head
3 #8
Drawer length Item No.
381 (15") 433.19.440
457 (18") 433.19.447
533 (21") 433.19.455

Accessories page 8.31
Pan head screws pages 12.9-12.10
Varianta screws page 12.16
