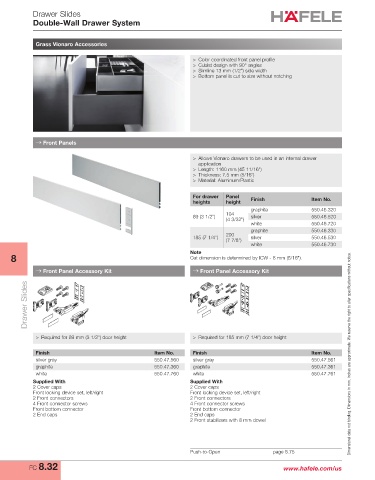

Drawer Slides
Double-Wall Drawer System

Grass Vionaro Accessories

> Color coordinated front panel profile
> Cubist design with 90° angles
> Slimline 13 mm (1/2") side width
> Bottom panel is cut to size without notching

→ Front Panels

> Allows Vionaro drawers to be used in an internal drawer
application
> Length: 1160 mm (45 11/16")
> Thickness: 7.5 mm (5/16")
> Material: Aluminum/Plastic

For drawer Panel Finish Item No.
heights height
graphite 550.46.320
89 (3 1/2") 104 silver 550.46.520
(4 3/32")
white 550.46.720
graphite 550.46.330
185 (7 1/4") 200 silver 550.46.530
(7 7/8")
white 550.46.730
Note
8 Cut dimension is determined by ICW - 8 mm (5/16").

→ Front Panel Accessory Kit → Front Panel Accessory Kit
Drawer Slides

> Required for 89 mm (3 1/2") door height > Required for 185 mm (7 1/4") door height

Finish Item No. Finish Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
silver gray 550.47.560 silver gray 550.47.561
graphite 550.47.360 graphite 550.47.361
white 550.47.760 white 550.47.761
Supplied With Supplied With
2 Cover caps 2 Cover caps
Front locking device set, left/right Front locking device set, left/right
2 Front connectors 2 Front connectors
4 Front connector screws 4 Front connector screws
Front bottom connector Front bottom connector
2 End caps 2 End caps
2 Front stabilizers with 8 mm dowel

Push-to-Open page 8.75
FC 8.32 www.hafele.com/us
