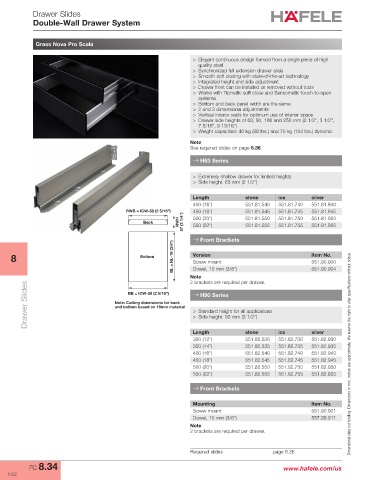

Drawer Slides
Double-Wall Drawer System

Grass Nova Pro Scala

> Elegant continuous design formed from a single piece of high
quality steel
> Synchronized full extension drawer slide
> Smooth soft closing with state-of-the-art technology
> Integrated height and side adjustment
> Drawer front can be installed or removed without tools
> Works with Tipmatic soft close and Sensomatic touch-to-open
systems
> Bottom and back panel width are the same
> 2 and 3 dimensional adjustments
> Vertical interior walls for optimum use of interior space
> Drawer side heights of 63, 90, 186 and 250 mm (2 1/2", 3 1/2",
7 5/16", 9 13/16")
> Weight capacities: 40 kg (88 lbs.) and 70 kg (154 lbs.) dynamic
Note
See required slides on page 8.36.
→ H63 Series

> Extremely shallow drawer for limited heights
> Side height: 63 mm (2 1/2")

Length stone ice silver
400 (16") 551.81.540 551.81.740 551.81.940
RWB = ICW-58 (2 5/16") 450 (18") 551.81.545 551.81.745 551.81.945

Back RWH 57 (2 1/4") 500 (20") 551.81.550 551.81.750 551.81.950
550 (22")
551.81.955
551.81.755
551.81.555
→ Front Brackets
BL = NL-19 (3/4") Version Item No.
8 Screw mount 551.90.900
Bottom
Dowel, 10 mm (3/8")
Note 551.90.904
2 brackets are required per drawer.
Drawer Slides Note: Cutting dimensions for back → H90 Series
BB = ICW-58 (2 5/16")

and bottom based on 16mm material
> Standard height for all applications
> Side height: 90 mm (3 1/2")

Length stone ice silver
300 (12") 551.82.530 551.82.730 551.82.930
350 (14") 551.82.535 551.82.735 551.82.935
400 (16") 551.82.540 551.82.740 551.82.940 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
450 (18") 551.82.545 551.82.745 551.82.945
500 (20") 551.82.550 551.82.750 551.82.950
550 (22") 551.82.555 551.82.755 551.82.955
→ Front Brackets

Mounting Item No.
Screw mount 551.90.901
Dowel, 10 mm (3/8") 557.99.911
Note
2 brackets are required per drawer.

Required slides page 8.36
