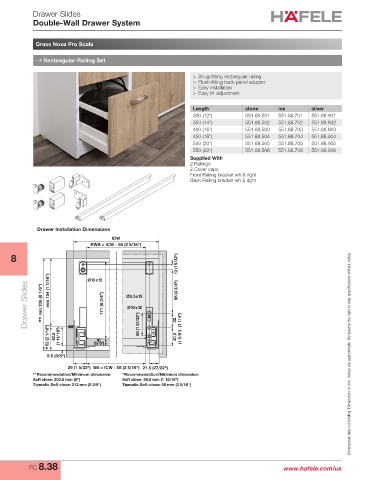

Drawer Slides
Double-Wall Drawer System

Grass Nova Pro Scala

→ Rectangular Railing Set

> Snug-fitting rectangular railing
> Flush-fitting back panel adapter
> Easy installation
> Easy tilt adjustment

Length stone ice silver
300 (12") 551.88.501 551.88.701 551.88.901
350 (14") 551.88.502 551.88.702 551.88.902
400 (16") 551.88.503 551.88.703 551.88.903
450 (18") 551.88.504 551.88.704 551.88.904
500 (20") 551.88.505 551.88.705 551.88.905
550 (22") 551.88.506 551.88.706 551.88.906
Supplied With
2 Railings
2 Cover caps
Front Railing bracket left & right
Back Railing bracket left & right

Drawer Installation Dimensions
ICW
RWB = ICW - 58 (2 5/16")

8 Ø 10 x 12 12 (15/32")

Drawer Slides min 206 (8 1/8") ** min 154 (1 1/16") 171 (6 3/4") Ø 3.5 x 15 32 96 (3 3/4") (1 1/4")

Ø 10 x 12

* 52 (2 1/16") 42.5 (1 11/16") (5/8") 50 (1 31/32") 40.5 (1 5/8")

16

9.5 (3/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
29 (1 5/32") BB = ICW - 58 (2 5/16") 21.5 (27/32")
**Recommendation/Minimum dimension: *Recommendation/Minimum dimension:
Soft close: 203.5 mm (8") Soft close: 49.5 mm (1 15/16")
Tipmatic Soft close: 212 mm (8 3/8") Tipmatic Soft-close: 58 mm (2 5/16")

FC 8.38 www.hafele.com/us
