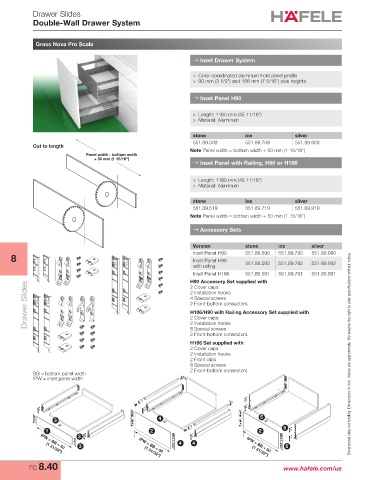

Drawer Slides
Double-Wall Drawer System

Grass Nova Pro Scala

→ Inset Drawer System

> Color-coordinated aluminum front panel profile
> 90 mm (3 1/2") and 186 mm (7 5/16") side heights

→ Inset Panel H90

> Length: 1160 mm (45 11/16")
> Material: Aluminum

stone ice silver
551.89.509 551.89.709 551.89.909
Cut to length
Note Panel width = bottom width + 50 mm (1 15/16")
Panel width - bottom width
+ 50 mm (1 15/16")
→ Inset Panel with Railing, H90 or H186

> Length: 1160 mm (45 11/16")
> Material: Aluminum

stone ice silver
551.89.519 551.89.719 551.89.919
Note Panel width = bottom width + 50 mm (1 15/16")

→ Accessory Sets

Version stone ice silver
Inset Panel H90 551.89.590 551.89.790 551.89.990
8 Inset Panel H90
with railing 551.89.592 551.89.792 551.89.992
Inset Panel H186 551.89.591 551.89.791 551.89.991
H90 Accessory Set supplied with
Drawer Slides 2 Installation hooks
2 Cover caps
4 Special screws
2 Front-bottom connectors
H186/H90 with Railing Accessory Set supplied with
2 Cover caps
2 Installation hooks
6 Special screws
2 Front-bottom connectors
H186 Set supplied with
2 Cover caps
2 Installation hooks Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2 Front clips
8 Special screws
2 Front-bottom connectors
BB = bottom panel width
IPW = inset panel width

3 4 5
5
1 2 2
3
4 4
3 IPW = BB + 50 IPW = BB + 50 5
IPW = BB + 50
(1 31/32")
(1 31/32")
(1 31/32")
FC 8.40 www.hafele.com/us
