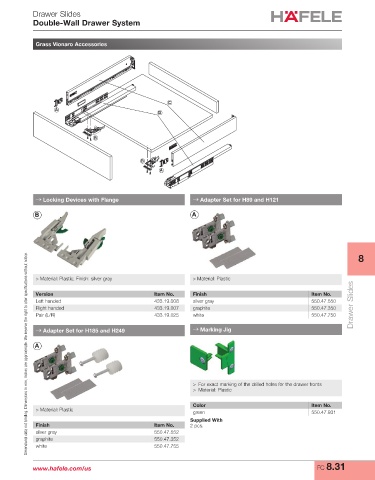

P. 695
Drawer Slides
Double-Wall Drawer System
Grass Vionaro Accessories
C
A
D
B
B
A
→ Locking Devices with Flange → Adapter Set for H89 and H121
B A
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
> Material: Plastic; Finish: silver gray > Material: Plastic
Version Item No. Finish Item No.
Left handed 433.19.008 silver gray 550.47.550
Right handed 433.19.007 graphite 550.47.350 Drawer Slides
Pair (L/R) 433.19.025 white 550.47.750
→ Adapter Set for H185 and H249 → Marking Jig
A
> For exact marking of the drilled holes for the drawer fronts
> Material: Plastic
Color Item No.
> Material: Plastic green 550.47.931
Supplied With
Finish Item No. 2 pcs.
silver gray 550.47.552
graphite 550.47.352
white 550.47.755
www.hafele.com/us FC 8.31
