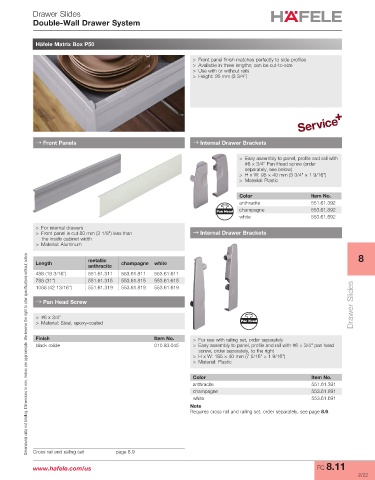

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box P50

> Front panel finish matches perfectly to side profiles
> Available in three lengths; can be cut-to-size
> Use with or without rails
> Height: 95 mm (3 3/4")

→ Front Panels → Internal Drawer Brackets

> Easy assembly to panel, profile and rail with
#6 × 3/4" Pan Head screw (order
separately, see below)
> H x W: 95 × 40 mm (3 3/4" × 1 9/16")
> Material: Plastic

Color Item No.
anthracite 551.61.392
champagne 553.61.892
Pan Head
white 553.61.692
> For internal drawers
> Front panel is cut 80 mm (3 1/8") less than → Internal Drawer Brackets
the inside cabinet width
> Material: Aluminum
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
Length metallic champagne white
anthracite
488 (19 3/16") 551.61.311 553.61.811 553.61.611
788 (31") 551.61.315 553.61.815 553.61.615
Drawer Slides
1088 (42 13/16") 551.61.319 553.61.819 553.61.619
→ Pan Head Screw

> #6 x 3/4"
> Material: Steel, epoxy-coated Pan Head

Finish Item No. > For use with railing set, order separately
black oxide 010.83.045 > Easy assembly to panel, profile and rail with #6 × 3/4" pan head
screw, order separately, to the right
> H x W: 185 × 40 mm (7 5/16" × 1 9/16")
> Material: Plastic

Color Item No.
anthracite 551.61.391
champagne 553.61.891
white 553.61.691
Note
Requires cross rail and railing set, order separately, see page 8.9.

Cross rail and railing set page 8.9

www.hafele.com/us FC 8.11
