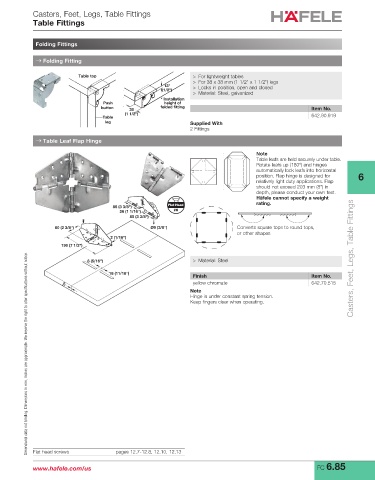

Casters, Feet, Legs, Table Fittings
Table Fittings

Folding Fittings

→ Folding Fitting

Table top > For lightweight tables
> For 38 x 38 mm (1 1/2" x 1 1/2") legs
13* > Locks in position, open and closed
(1/2")
> Material: Steel, galvanized
* Installation
Push height of
button 38 folded fitting Item No.
(1 1/2") 642.90.919
Table
leg Supplied With
2 Fittings
→ Table Leaf Flap Hinge

Note
Table leafs are held securely under table.
Rotate leafs up (180º) and hinges
automatically lock leafs into horizontal
position. Flap hinge is designed for 6
relatively light duty applications. Flap
should not exceed 203 mm (8") in
depth, please conduct your own test.
Häfele cannot specify a weight
rating.
Flat Head
85 (3 3/8")
26 (1 1/16") #6
85 (3 3/8")
60 (2 3/8") Ø9 (3/8") Converts square tops to round tops,
or other shapes
2 (1/16")
190 (7 1/2")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8 (5/16") > Material: Steel Casters, Feet, Legs, Table Fittings
18 (11/16")
Finish Item No.
.5 yellow chromate 642.70.515
Note
Hinge is under constant spring tension.
Keep fingers clear when operating.

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 6.85
