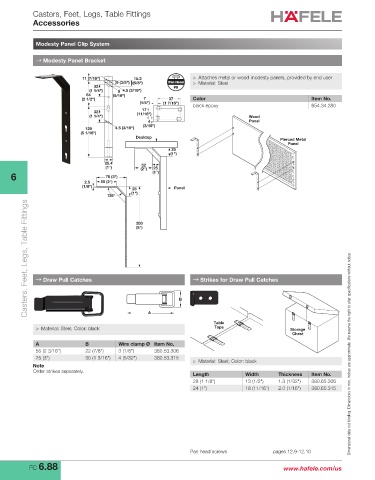

P. 518
Casters, Feet, Legs, Table Fittings
Accessories
Modesty Panel Clip System
→ Modesty Panel Bracket
11 (7/16") 15.2 > Attaches metal or wood modesty panels, provided by end user
9 (3/8") (5/8") Pan Head > Material: Steel
32 #8
(1 1/4") 8 4.5 (3/16")
64 (5/16")
(2 1/2") 7 37 Color Item No.
(1/4") (1 7/16") black epoxy 654.34.380
17
32 (11/16")
(1 1/4") Wood
4 Panel
129 4.5 (3/16") (3/16")
(5 1/16")
Desktop
Pierced Metal
Panel
25
(1")
25.4
52
(1") (2") 25
6 76 (3") (1")
2.5 50 (2")
(1/8")
25 Panel
(1")
135°
Casters, Feet, Legs, Table Fittings
203
(8")
→ Draw Pull Catches → Strikes for Draw Pull Catches
B
A
Table
> Material: Steel; Color: black Tops Storage
Chest
A B Wire clamp Ø Item No.
55 (2 3/16") 22 (7/8") 3 (1/8") 380.53.306 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
75 (3") 30 (1 3/16") 4 (5/32") 380.53.315 > Material: Steel; Color: black
Note
Order strikes separately.
Length Width Thickness Item No.
28 (1 1/8") 13 (1/2") 1.3 (1/32") 380.65.306
24 (1") 18 (11/16") 2.0 (1/16") 380.65.315
Pan head screws pages 12.9-12.10
FC 6.88 www.hafele.com/us
