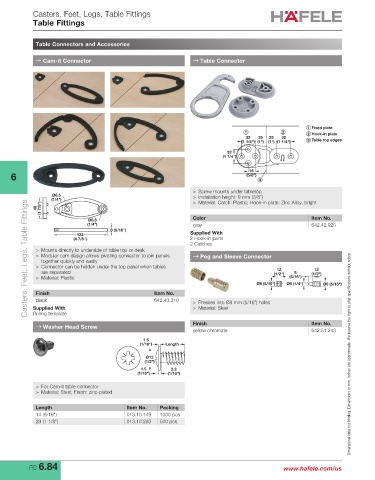

Page 514 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Table Fittings

Table Connectors and Accessories

→ Cam-it Connector → Table Connector

Fixed plate
Hook-in plate
32 25 25 32
(1 1/4") (1") (1") (1 1/4") Table top edges
32
(1 1/4")

16
6 (5/8")

> Screw mounts under tabletop
Ø6.5 > Installation height: 9 mm (3/8")
(1/4") > Material: Catch: Plastic; Hook-in plate: Zinc Alloy, bright
Casters, Feet, Legs, Table Fittings
(1 7/8")
48
Color Item No.
Ø6.5
(1/4") gray 642.42.920
8 (5/16")
122 Supplied With
(4 7/8") 2 Hook-in parts
2 Catches
> Mounts directly to underside of table top or desk
> Modular cam design allows pivoting connector to join panels → Peg and Sleeve Connector
together quickly and easily
> Connector can be hidden under the top panel when tables
12
12
are separated (1/2") 8 (1/2")
> Material: Plastic (5/16")
Ø8 (5/16") Ø6 (1/4") Ø8 (5/16")
Finish Item No.
black 642.43.310 > Presses into Ø8 mm (5/16") holes
Supplied With > Material: Steel
Drilling template
Finish Item No.
→ Washer Head Screw
yellow chromate 642.51.243
1.5
(1/16") Length
Ø13 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1/2")
1.5 2.2
(1/16") (1/16")
> For Cam-it table connector
> Material: Steel; Finish: zinc-plated

Length Item No. Packing
14 (9/16") 013.10.149 1000 pcs.
29 (1 1/8") 013.10.283 500 pcs.

FC 6.84 www.hafele.com/us
