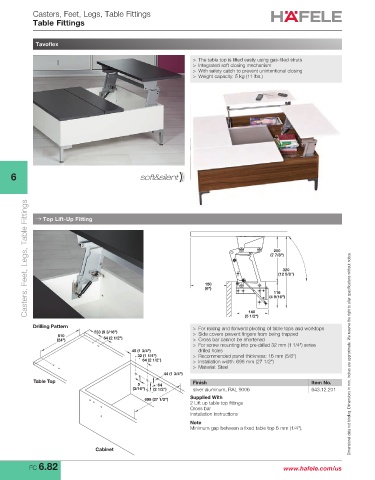

Page 512 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Table Fittings

Tavoflex

> The table top is lifted easily using gas-filled struts
> Integrated soft closing mechanism
> With safety catch to prevent unintentional closing
> Weight capacity: 5 kg (11 lbs.)

6

Casters, Feet, Legs, Table Fittings

→ Top Lift-Up Fitting

200
(7 7/8")
320
(12 5/8")
150
(6")
116
(4 9/16")

140
(5 1/2")
Drilling Pattern > For raising and forward pivoting of table tops and worktops
233 (9 3/16")
610 > Side covers prevent fingers from being trapped
(24") 64 (2 1/2") > Cross bar cannot be shortened
> For screw mounting into pre-drilled 32 mm (1 1/4") series
45 (1 3/4") drilled holes
32 (1 1/4") > Recommended panel thickness: 16 mm (5/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
64 (2 1/2") > Installation width: 698 mm (27 1/2")
> Material: Steel
44 (1 3/4")
Table Top Finish Item No.
5 64
(3/16") (2 1/2") silver aluminum, RAL 9006 643.12.201
698 (27 1/2") Supplied With
2 Lift up table top fittings
Cross bar
Installation instructions
Note
Minimum gap between a fixed table top 6 mm (1/4").

Cabinet

FC 6.82 www.hafele.com/us
