Casters, Feet, Legs, Table Fittings
Table Fittings

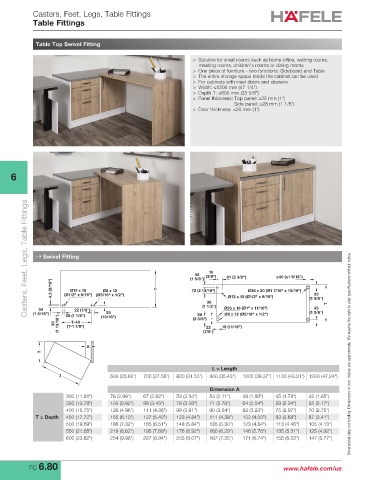

Table Top Swivel Fitting

> Solution for small rooms such as home office, waiting rooms,
meeting rooms, children’s rooms or dining rooms
> One piece of furniture - two functions: Sideboard and Table
> The entire storage space inside the cabinet can be used
> For cabinets with inset doors and drawers
> Width: ≤1200 mm (47 1/4")
> Depth T: ≤600 mm (23 5/8")
> Panel thickness: Top panel: ≥25 mm (1")
Side panel: ≥28 mm (1 1/8")
> Door thickness: ≤25 mm (1")

6

Casters, Feet, Legs, Table Fittings

→ Swivel Fitting

10
42 (3/8")
(1 5/8") 61 (2 3/8") ≥40 (≥1 9/16")
4.5 (3/16") (Ø1/2" x 9/16") (Ø5/16" x 1/2") T 72 (2 13/16") Ø36 x 20 (Ø1 7/16" x 13/16") 35
Ø8 x 12
Ø12 x 15
38 Ø12 x 15 (Ø1/2" x 9/16") (1 3/8") T
(1 1/2")
34 22 (7/8") Ø25 x 18 (Ø1" x 11/16") 35
20
(1 5/16") 28 (1 1/8") (13/16") (3 3/8") Ø8 x 12 (Ø5/16" x 1/2") (1 3/8")
86
(1 13/16") T-48
30 (T-1 7/8") (7/8") 18 (11/16")
22
A
T Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
L = Length
L 600 (23.62") 700 (27.56") 800 (31.50") 900 (35.43") 1000 (39.37") 1100 (43.31") 1200 (47.24")

Dimension A
300 (11.81") 76 (2.99") 67 (2.62") 59 (2.34") 54 (2.11") 49 (1.93") 45 (1.78") 42 (1.65")
350 (13.78") 100 (3.92") 88 (3.45") 78 (3.08") 71 (2.78") 64 (2.54") 59 (2.34") 55 (2.17")
400 (15.75") 126 (4.96") 111 (4.38") 99 (3.91") 90 (3.54") 82 (3.23") 75 (2.97") 70 (2.75")
T = Depth 450 (17.72") 155 (6.10") 137 (5.40") 123 (4.84") 111 (4.38") 102 (4.00") 93 (3.68") 87 (3.41")
500 (19.69") 186 (7.32") 165 (6.51") 148 (5.84") 135 (5.30") 123 (4.84") 113 (4.46") 105 (4.13")
550 (21.65") 219 (8.62") 195 (7.69") 176 (6.92") 160 (6.29") 146 (5.76") 135 (5.31") 125 (4.92")
600 (23.62") 254 (9.98") 227 (8.94") 205 (8.07") 187 (7.35") 171 (6.74") 158 (6.22") 147 (5.77")

FC 6.80 www.hafele.com/us
