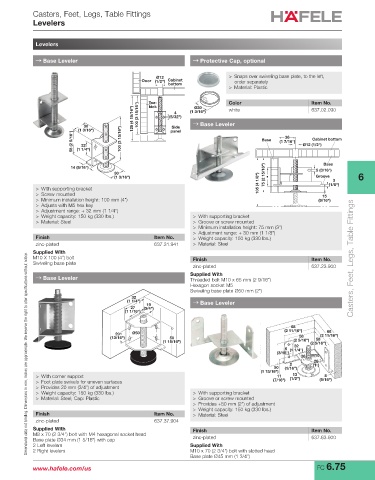

Page 505 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Levelers

Levelers

→ Base Leveler → Protective Cap, optional

Ø12 > Snaps over swiveling base plate, to the left,
Door (1/2") Cabinet order separately
bottom
> Material: Plastic
Toe- Ø30 Color Item No.
kick
125 (4 15/16") 100 (3 15/16") (5/32") (1 3/16")
white
637.02.090
4
30 Side → Base Leveler
(1 3/16") panel
58 (2 5/16") (1 1/4") 100 (3 15/16") Base (1 7/16") Ø12 (1/2")
36
Cabinet bottom
32
Base
14 (9/16") 5 (3/16")
30 75 (2 15/16")
(1 3/16") • Groove 3 6
> With supporting bracket 105 (4 1/8") (1/8")
> Screw mounted 15
> Minimum installation height: 100 mm (4") (9/16")
> Adjusts with M5 hex key
> Adjustment range: + 32 mm (1 1/4")
> Weight capacity: 150 kg (330 lbs.) > With supporting bracket
> Material: Steel > Groove or screw mounted
> Minimum installation height: 75 mm (3")
> Adjustment range: + 30 mm (1 1/8")
Finish Item No. > Weight capacity: 150 kg (330 lbs.)
zinc-plated 637.31.941 > Material: Steel
Supplied With
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
M10 X 100 (4") bolt Finish Item No. Casters, Feet, Legs, Table Fittings
Swiveling base plate
zinc-plated 637.23.900
Supplied With
→ Base Leveler Threaded bolt M10 x 65 mm (2 9/16")
Hexagon socket M5
Swiveling base plate Ø50 mm (2")
32
(1 1/4") → Base Leveler
19
27 (3/4")
(1 1/16")
68
(2 11/16") 68
20 Ø50 (2 11/16")
(13/16") 50 58 58
(1 15/16") (2 5/16") (2 5/16")
32
5 (1 1/4")
(3/16")
26 M10
26
2 (1")
50 (1/16")
(1 15/16")
13
> With corner support 11 (1/2") 8
> Foot plate swivels for uneven surfaces (7/16") (5/16")
> Provides 20 mm (3/4") of adjustment
> Weight capacity: 150 kg (330 lbs.) > With supporting bracket
> Material: Steel; Cap: Plastic > Groove or screw mounted
> Provides +50 mm (2") of adjustment
> Weight capacity: 150 kg (330 lbs.)
Finish Item No. > Material: Steel
zinc-plated 637.37.904
Supplied With Finish Item No.
M8 x 70 (2 3/4") bolt with M4 hexagonal socket head
Base plate Ø34 mm (1 5/16") with cap zinc-plated 637.63.900
2 Left levelers Supplied With
2 Right levelers M10 x 70 (2 3/4") bolt with slotted head
Base plate Ø45 mm (1 3/4")
www.hafele.com/us FC 6.75
