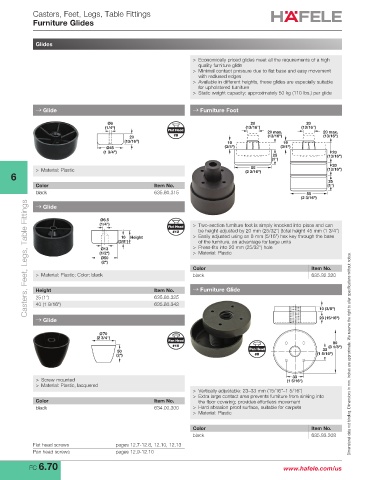

Casters, Feet, Legs, Table Fittings
Furniture Glides

Glides

> Economically priced glides meet all the requirements of a high
quality furniture glide
> Minimal contact pressure due to flat base and easy movement
with radiused edges
> Available in different heights, these glides are especially suitable
for upholstered furniture
> Static weight capacity: approximately 50 kg (110 lbs.) per glide

→ Glide → Furniture Foot

Ø6 20 20
(1/4") (13/16") (13/16")
Flat Head 20 max. 20 max.
20 #9 (13/16") (13/16")
(13/16") 19 19
Ø45 (3/4") (3/4")
(1 3/4") 20
25 (13/16")
(1")
20
55
> Material: Plastic (2 3/16") (13/16")
6
25
Color Item No. (1")
black 635.80.315 55
(2 3/16")
Casters, Feet, Legs, Table Fittings
→ Glide
Ø6.5
(1/4") > Two-section furniture foot is simply knocked into place and can
Flat Head
#12 be height adjusted by 20 mm (25/32") (total height 45 mm (1 3/4")
16 Height > Easily adjusted using an 8 mm (5/16") hex key through the base
(5/8") of the furniture, an advantage for large units
Ø13 > Press-fits into 20 mm (25/32") hole
(1/2") > Material: Plastic
Ø50
(2")
Color Item No.
> Material: Plastic; Color: black black 635.92.320

Height Item No. → Furniture Glide
25 (1") 635.80.325
40 (1 9/16") 635.80.343
10 (3/8")
→ Glide 23 (15/16")

Ø70
(2 3/4")
Pan Head 80
#10 (3 1/8")
50 Pan Head 33
(2") #8 (1 5/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

33
> Screw mounted (1 5/16")
> Material: Plastic, lacquered
> Vertically adjustable: 23–33 mm (15/16"–1 5/16")
> Extra large contact area prevents furniture from sinking into
Color Item No. the floor covering; provides effortless movement
black 634.00.300 > Hard abrasion proof surface, suitable for carpets
> Material: Plastic

Color Item No.
black 635.83.308
Flat head screws pages 12.7-12.8, 12.10, 12.13
Pan head screws pages 12.9-12.10
