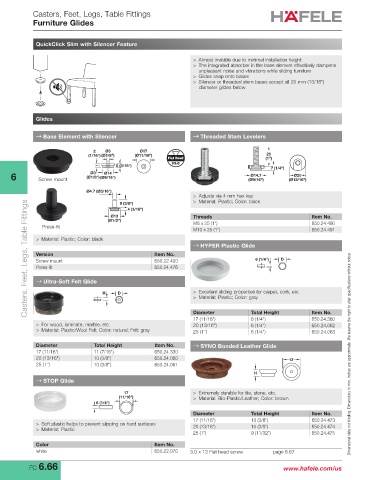

Page 496 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Furniture Glides

QuickClick Slim with Silencer Feature

> Almost invisible due to minimal installation height
> The integrated absorber in the base element effectively dampens
unpleasant noise and vibrations while sliding furniture
> Glides snap onto bases
> Silencer or threaded stem bases accept all 20 mm (13/16")
diameter glides below

Glides

→ Base Element with Silencer → Threaded Stem Levelers

2 Ø3 Ø17
(1/16") (Ø1/8") (Ø11/16") 25
Flat Head (1")
#3.0
5 (3/16")
7 (1/4")
Ø3
Ø14
6 Screw mount (Ø1/8") (Ø9/16") (Ø9/16") (Ø13/16")
Ø20
Ø14.7
Ø4.7 (Ø3/16")
> Adjusts via 4 mm hex key
> Material: Plastic; Color: black
Casters, Feet, Legs, Table Fittings
9 (3/8")
4 (3/16")
Ø13 Threads Item No.
(Ø1/2") M8 x 25 (1") 650.24.490
Press-fit
M10 x 25 (1") 650.24.491
> Material: Plastic; Color: black
→ HYPER Plastic Glide
Version Item No.
Screw mount 650.22.400 6 (1/4") D
Press-fit 650.24.476
→ Ultra-Soft Felt Glide
H D > Excellent sliding properties for carpet, cork, etc.
> Material: Plastic; Color: gray

Diameter Total Height Item No.
17 (11/16") 6 (1/4") 650.24.360
> For wood, laminate, marble, etc. 20 (13/16") 6 (1/4") 650.24.062
> Material: Plastic/Wool Felt; Color: natural; Felt: gray 25 (1") 6 (1/4") 650.24.063

Diameter Total Height Item No. → SYNO Bonded Leather Glide
17 (11/16") 11 (7/16") 650.24.330 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
20 (13/16") 10 (3/8") 650.24.060 D
25 (1") 10 (3/8") 650.24.061
H
→ STOP Glide

17 > Extremely durable for tile, stone, etc.
(11/16") > Material: Bio-Plastic/Leather; Color: brown
6 (1/4")
Diameter Total Height Item No.
17 (11/16") 10 (3/8") 650.24.473
> Soft plastic helps to prevent slipping on hard surfaces
> Material: Plastic 20 (13/16") 10 (3/8") 650.24.474
25 (1") 9 (11/32") 650.24.475
Color Item No.
white 650.22.070 3.0 x 13 Flat head screw page 6.67

FC 6.66 www.hafele.com/us
