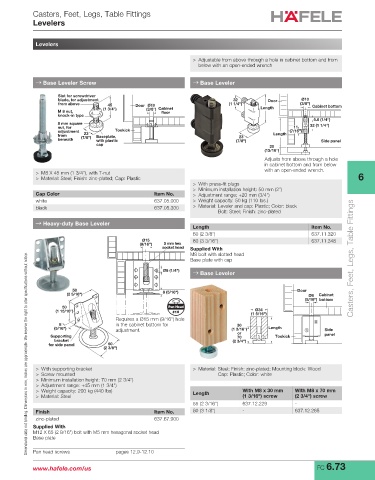

Page 503 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Levelers

Levelers

> Adjustable from above through a hole in cabinet bottom and from
below with an open-ended wrench

→ Base Leveler Screw → Base Leveler

Slot for screwdriver
blade, for adjustment 32 Door Ø10
from above 45 Door Ø10 (1 1/4") (3/8") Cabinet bottom
(1 3/4") (3/8") Cabinet Length
M 8 nut, floor
knock-in type
5.6 (1/4")
8 mm square 32 (1 1/4")
nut, for 11
adjustment 23 Toekick (7/16")
from Baseplate, 23 Length
beneath (7/8") with plastic (7/8") Side panel
cap 20
(13/16")
Adjusts from above through a hole
in cabinet bottom and from below
with an open-ended wrench.
> M8 X 45 mm (1 3/4"), with T-nut
> Material: Steel; Finish: zinc-plated; Cap: Plastic 6
> With press-fit plugs
> Minimum installation height: 50 mm (2")
Cap Color Item No. > Adjustment range: +20 mm (3/4")
white 637.05.000 > Weight capacity: 50 kg (110 lbs.)
black 637.05.300 > Material: Leveler and cap: Plastic; Color: black
Bolt: Steel; Finish: zinc-plated
→ Heavy-duty Base Leveler
Length Item No.
60 (2 3/8") 637.11.320
Ø15 80 (3 3/16") 637.11.348
(9/16") 5 mm hex
socket head Supplied With
M8 bolt with slotted head
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Base plate with cap Casters, Feet, Legs, Table Fittings
Ø6 (1/4")
→ Base Leveler

58 Door
(2 5/16") 8 (5/16") Ø8 Cabinet
(5/16") bottom
50 Pan Head
Ø34
(1 15/16") #10 (1 5/16")
Requires a Ø15 mm (9/16”) hole
8 in the cabinet bottom for 30
(5/16") adjustment. (1 3/16") Length Side
or
Supporting 70 Toekick panel
bracket (2 3/4")
for side panel 60
(2 3/8")
> With supporting bracket > Material: Steel; Finish: zinc-plated; Mounting block: Wood
> Screw mounted Cap: Plastic; Color: white
> Minimum installation height: 70 mm (2 3/4")
> Adjustment range: +45 mm (1 3/4")
> Weight capacity: 200 kg (440 lbs) Length With M8 x 30 mm With M8 x 70 mm
> Material: Steel (1 3/16") screw (2 3/4") screw
55 (2 3/16") 637.12.229 -
Finish Item No. 80 (3 1/8") - 637.12.265
zinc-plated 637.67.900
Supplied With
M12 X 65 (2 9/16") bolt with M5 mm hexagonal socket head
Base plate

Pan head screws pages 12.9-12.10
