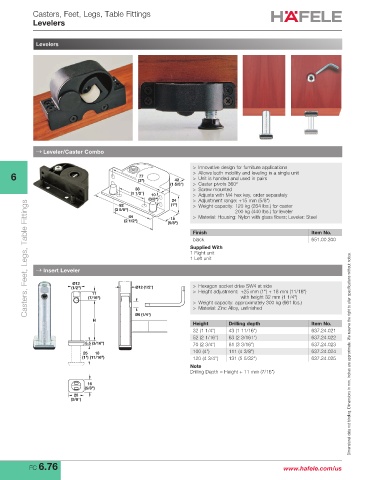

Casters, Feet, Legs, Table Fittings
Levelers

Levelers

→ Leveler/Caster Combo

> Innovative design for furniture applications
6 77 42 > Allows both mobility and leveling in a single unit
> Unit is handed and used in pairs
(3")
(1 5/8") > Caster pivots 360º
38 > Screw mounted
(1 1/2") 10 > Adjusts with M4 hex key, order separately
(3/8") 24 > Adjustment range: +15 mm (5/8")
Casters, Feet, Legs, Table Fittings
92 (1") > Weight capacity: 120 kg (264 lbs.) for caster
(3 5/8") 200 kg (440 lbs.) for leveler
64 15 > Material: Housing: Nylon with glass fibers; Leveler: Steel
(2 1/2") (5/8")
Finish Item No.
black 651.00.300
Supplied With
1 Right unit
1 Left unit
→ Insert Leveler

Ø12 > Hexagon socket drive SW4 at side
(1/2") Ø12 (1/2")
11 > Height adjustment: +25 mm (1") + 18 mm (11/16")
(7/16") with height 32 mm (1 1/4")
> Weight capacity: approximately 300 kg (661 lbs.)
> Material: Zinc Alloy, unfinished
Ø6 (1/4")
H
Height Drilling depth Item No.
32 (1 1/4") 43 (1 11/16") 637.24.021
52 (2 1/16") 63 (2 3/161") 637.24.022
5.5 (3/16") 70 (2 3/4") 81 (3 3/16") 637.24.023
25 18 100 (4") 111 (4 3/8") 637.24.024 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1") (11/16") 120 (4 3/4") 131 (5 5/32") 637.24.025
Note
Drilling Depth = Height + 11 mm (7/16")

16
(5/8")
20
(5/8")

FC 6.76 www.hafele.com/us
