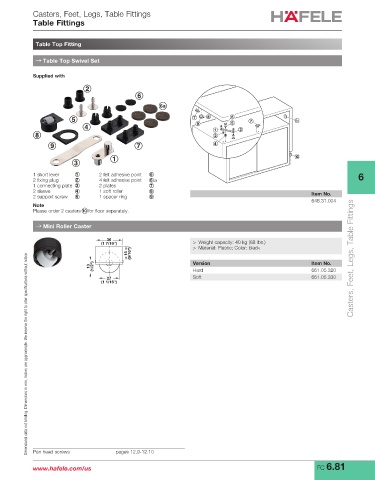

Casters, Feet, Legs, Table Fittings
Table Fittings

Table Top Fitting

→ Table Top Swivel Set

Supplied with

1 short lever 1 2 felt adhesive point 6 6
2 fixing plug 2 4 felt adhesive point 6 a
1 connecting plate 3 2 plates 7
2 sleeve 4 1 soft roller 8 Item No.
2 support screw 5 1 spacer ring 9
646.31.004
Note
10
Please order 2 casters for floor separately.
→ Mini Roller Caster

36
(1 7/16") > Weight capacity: 40 kg (88 lbs.)
> Material: Plastic; Color: black
(9/16")
15 Casters, Feet, Legs, Table Fittings
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1/2") Version Item No.
13 Hard 661.05.320
27 Soft 661.05.330
(1 1/16")

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 6.81
