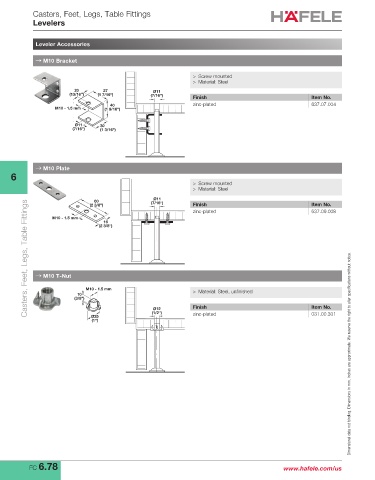

P. 508
Casters, Feet, Legs, Table Fittings
Levelers
Leveler Accessories
→ M10 Bracket
> Screw mounted
> Material: Steel
20 37 Ø11
(13/16") (1 7/16") (7/16") Finish Item No.
40 zinc-plated 637.07.004
M10 - 1.5 mm (1 9/16")
Ø11 30
(7/16") (1 3/16")
→ M10 Plate
6
> Screw mounted
> Material: Steel
Ø11
60 (7/16")
Casters, Feet, Legs, Table Fittings
(2 3/8") Finish Item No.
zinc-plated 637.09.008
M10 - 1.5 mm
16
(2 3/8")
→ M10 T-Nut
M10 - 1.5 mm > Material: Steel, unfinished
10
(3/8")
Ø12 Finish Item No.
(1/2") zinc-plated 031.00.301
Ø25
(1") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 6.78 www.hafele.com/us
