Casters, Feet, Legs, Table Fittings
Table Fittings

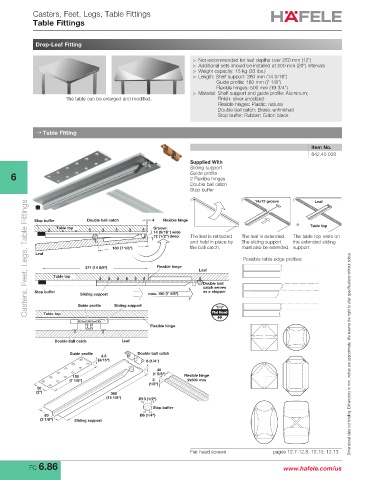

Drop-Leaf Fitting

> Not recommended for leaf depths over 250 mm (12")
> Additional sets should be installed at 500 mm (20") intervals
> Weight capacity: 15 kg (33 lbs.)
> Length: Shelf support: 360 mm (14 3/16")
Guide profile: 180 mm (7 1/8")
Flexible hinges: 500 mm (19 3/4")
> Material: Shelf support and guide profile: Aluminum;
The table can be enlarged and modified. Finish: silver anodized
Flexible hinges: Plastic; natural
Double ball catch: Brass; unfinished
Stop buffer: Rubber; Color: black

→ Table Fitting

Item No.
642.40.008
Supplied With
Sliding support
6 Guide profile
2 Flexible hinges
Double ball catch
Stop buffer
14x12 groove Leaf
Casters, Feet, Legs, Table Fittings

Stop buffer Double ball catch 4 Flexible hinge
Table top
Table top Groove:
14 (9/16") wide
12 (1/2") deep The leaf is retracted The leaf is extended. The table top rests on
and held in place by The sliding support the extended sliding
180 (7 1/8") the ball catch. must also be extended. support.
Leaf
Possible table edge profiles:
371 (14 5/8") Flexible hinge
Leaf
Table top
Double ball
catch serves
Stop buffer as a stopper
Sliding support max. 180 (7 1/8")
Guide profile Sliding support
Table top Flat Head
#9
Flexible hinge

Double ball catch Leaf

Guide profile 4.3 Double ball catch Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(3/16") 6 (1/4")
40
(1 5/8")
180 Flexible hinge
(7 1/8") 3 2x500 mm
(1/8")
50
(2") 360
(14 1/8") Ø13 (1/2")
Stop buffer
80 Ø6 (1/4")
(3 1/8") Sliding support

Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 6.86 www.hafele.com/us
