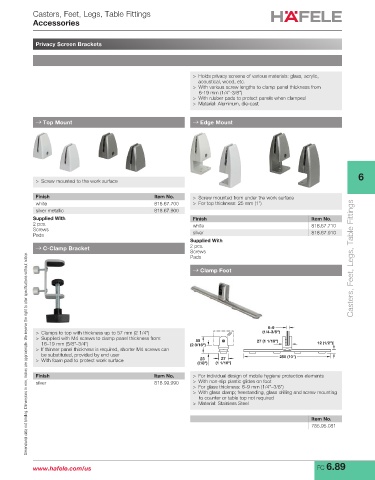

Page 519 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Casters, Feet, Legs, Table Fittings
Accessories

Privacy Screen Brackets

> Holds privacy screens of various materials: glass, acrylic,
acoustical, wood, etc.
> With various screw lengths to clamp panel thickness from
6-19 mm (1/4"-3/8")
> With rubber pads to protect panels when clamped
> Material: Aluminum, die-cast

→ Top Mount → Edge Mount

6
> Screw mounted to the work surface

Finish Item No. > Screw mounted from under the work surface
white 818.67.700 > For top thickness: 25 mm (1")
silver metallic 818.67.900
Supplied With Finish Item No.
2 pcs. white 818.67.710
Screws
Pads silver 818.67.910
Supplied With
→ C-Clamp Bracket 2 pcs.
Screws
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Pads Casters, Feet, Legs, Table Fittings
→ Clamp Foot

6–9
> Clamps to top with thickness up to 57 mm (2 1/4") (1/4-3/8")
> Supplied with M4 screws to clamp panel thickness from: 55
16–19 mm (5/8"–3/4") (2 3/16") 27 (1 1/16") 12 (1/2")
> If thinner panel thickness is required, shorter M4 screws can
be substituted, provided by end user 250 (10")
27
23
> With foam pad to protect work surface (7/8") (1 1/16")
Finish Item No. > For individual design of mobile hygiene protection elements
silver 818.99.990 > With non-slip plastic glides on foot
> For glass thickness: 6–9 mm (1/4"–3/8")
> With glass clamp; freestanding, glass drilling and screw mounting
to counter or table top not required
> Material: Stainless Steel

Item No.
785.95.081

www.hafele.com/us FC 6.89
