Casters, Feet, Legs, Table Fittings
Table Legs

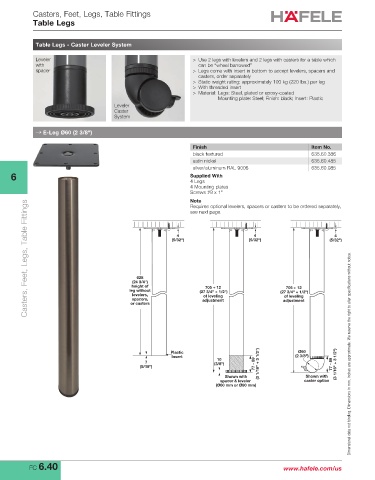

Table Legs - Caster Leveler System

Leveler > Use 2 legs with levelers and 2 legs with casters for a table which
with can be “wheel barrowed”
spacer > Legs come with insert in bottom to accept levelers, spacers and
casters, order separately
> Static weight rating: approximately 100 kg (220 lbs.) per leg
> With threaded insert
> Material: Legs: Steel, plated or epoxy-coated
Mounting plate: Steel; Finish: black; Insert: Plastic
Leveler
Caster
System

→ E-Leg Ø60 (2 3/8")

Finish Item No.
black textured 635.60.386
satin nickel 635.60.485
silver/aluminum RAL 9006 635.60.985
6 Supplied With
4 Legs
4 Mounting plates
Screws #9 x 1"
Note
Casters, Feet, Legs, Table Fittings
Requires optional levelers, spacers or casters to be ordered separately,
see next page.

4 4 4
(5/32") (5/32") (5/32")

628
(24 3/4")
height of 705 + 12 705 + 12
leg without (27 3/4" + 1/2") (27 3/4" + 1/2")
levelers, of leveling of leveling
spacers, adjustment adjustment
or casters

Plastic Ø60 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Insert 10 (2 3/8")
7 (3/8") 77 - 89
(5/16") (3 1/16" + 3 1/2") 77 - 89 (3 1/16" + 3 1/2")
Shown with Shown with
spacer & leveler caster option
(Ø60 mm or Ø90 mm)

FC 6.40 www.hafele.com/us
