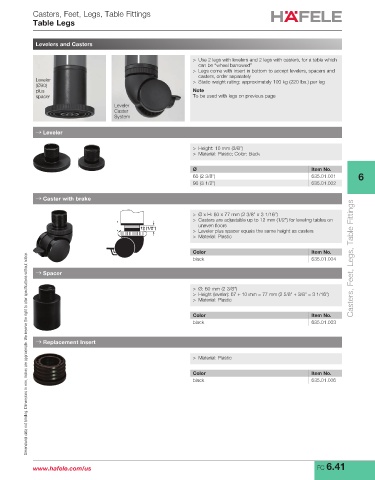

P. 469
Casters, Feet, Legs, Table Fittings
Table Legs
Levelers and Casters
> Use 2 legs with levelers and 2 legs with casters, for a table which
can be “wheel barrowed”
> Legs come with insert in bottom to accept levelers, spacers and
casters, order separately
Leveler > Static weight rating: approximately 100 kg (220 lbs.) per leg
(Ø90)
plus Note
spacer To be used with legs on previous page
Leveler
Caster
System
→ Leveler
> Height: 10 mm (3/8")
> Material: Plastic; Color: black
Ø Item No.
60 (2 3/8") 635.01.001 6
90 (3 1/2") 635.01.002
→ Caster with brake
> Ø x H: 60 x 77 mm (2 3/8" x 3 1/16")
> Casters are adjustable up to 12 mm (1/2") for leveling tables on
uneven floors
12 (1/2")
> Leveler plus spacer equals the same height as casters
> Material: Plastic
Color Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
black 635.01.004 Casters, Feet, Legs, Table Fittings
→ Spacer
> Ø: 60 mm (2 3/8")
> Height (leveler): 67 + 10 mm = 77 mm (2 5/8" + 3/8" = 3 1/16")
> Material: Plastic
Color Item No.
black 635.01.003
→ Replacement Insert
> Material: Plastic
Color Item No.
black 635.01.006
www.hafele.com/us FC 6.41
