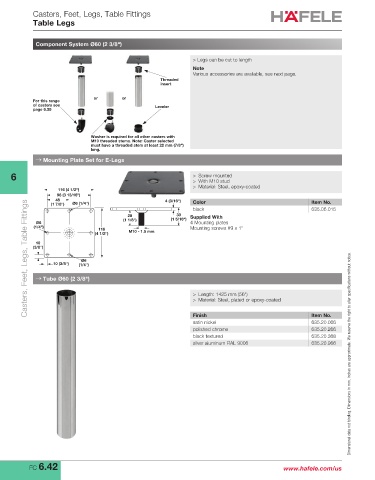

Casters, Feet, Legs, Table Fittings
Table Legs

Component System Ø60 (2 3/8")

> Legs can be cut to length
Note
Various accessories are available, see next page.
Threaded
insert

or or
For this range
of casters see Leveler
page 6.39

Washer is required for all other casters with
M10 threaded stems. Note: Caster selected
must have a threaded stem at least 22 mm (7/8")
long.
→ Mounting Plate Set for E-Legs

6 > Screw mounted
> With M10 stud
> Material: Steel, epoxy-coated
116 (4 1/2")
96 (3 13/16")
48 4 (3/16")
Casters, Feet, Legs, Table Fittings
(1 7/8") Ø6 (1/4") Color Item No.
black 635.06.015
28 33 Supplied With
(1 1/8") (1 5/16")
Ø6 4 Mounting plates
(1/4") Mounting screws #9 x 1"
116
(4 1/2") M10 - 1.5 mm
10
(3/8")
Ø6
10 (3/8") (1/4")
→ Tube Ø60 (2 3/8")

> Length: 1425 mm (56")
> Material: Steel, plated or epoxy-coated

Finish Item No.
satin nickel 635.20.066
polished chrome 635.20.266
black textured 635.20.368
silver aluminum RAL 9006 635.20.966 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
