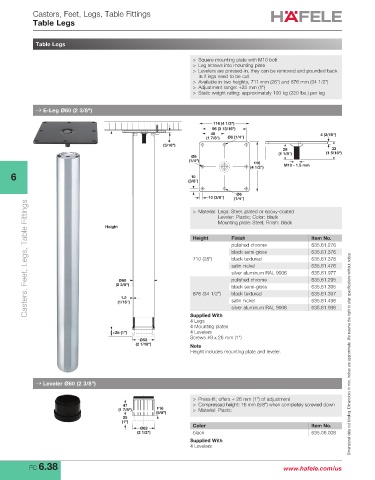

Casters, Feet, Legs, Table Fittings
Table Legs

Table Legs

> Square mounting plate with M10 bolt
> Leg screws into mounting plate
> Levelers are pressed-in, they can be removed and pounded back
in if legs need to be cut
> Available in two heights, 711 mm (28") and 876 mm (34 1/2")
> Adjustment range: +25 mm (1")
> Static weight rating: approximately 100 kg (220 lbs.) per leg

→ E-Leg Ø60 (2 3/8")

116 (4 1/2")
96 (3 13/16")
48 4 (3/16")
(1 7/8") Ø6 (1/4")
4
(3/16")
28 33
(1 1/8") (1 5/16")
Ø6
(1/4")
116
(4 1/2") M10 - 1.5 mm
6 10
(3/8")
Ø6
10 (3/8") (1/4")
Casters, Feet, Legs, Table Fittings
> Material: Legs: Steel, plated or epoxy-coated
Leveler: Plastic; Color: black
Mounting plate: Steel; Finish: black
Height
Height Finish Item No.
polished chrome 635.61.276
black semi-gloss 635.61.376
710 (28") black textured 635.61.378
satin nickel 635.61.476
silver aluminum RAL 9006 635.61.977
Ø60 polished chrome 635.61.295
(2 3/8") black semi-gloss 635.61.395
876 (34 1/2") black textured 635.61.397
1.2
(1/16") satin nickel 635.61.496
silver aluminum RAL 9006 635.61.996
Supplied With
4 Legs
4 Mounting plates
+25 (1") 4 Levelers
Ø53 Screws #9 x 26 mm (1")
(2 1/16") Note
Height includes mounting plate and leveler. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Leveler Ø60 (2 3/8")

> Press-fit; offers + 26 mm (1") of adjustment
47 > Compressed height: 16 mm (5/8") when completely screwed down
(1 7/8") 16 > Material: Plastic
(5/8")
25
(1")
Ø62 Color Item No.
(2 1/2") black 635.06.008
Supplied With
4 Levelers
