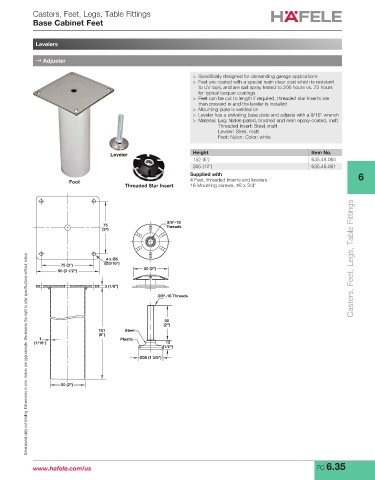

Casters, Feet, Legs, Table Fittings
Base Cabinet Feet

Levelers

→ Adjuster

> Specifically designed for demanding garage applications
> Feet are coated with a special resin clear coat which is resistant
to UV rays, and are salt spray tested to 200 hours vs. 72 hours
for typical lacquer coatings
> Feet can be cut to length if required, threaded star inserts are
then pressed in and the leveler is installed
> Mounting plate is welded on
> Leveler has a swiveling base plate and adjusts with a 9/16" wrench
> Material: Leg: Nickel-plated, brushed and resin epoxy-coated, matt
Threaded Insert: Steel, matt
Leveler: Steel, matt
Foot: Nylon; Color: white

Leveler Height Item No.
152 (6") 635.48.060
305 (12") 635.48.061
Supplied with 6
Foot 4 Feet, threaded inserts and levelers
Threaded Star Insert 16 Mounting screws, #8 x 3/4"

3/8"-16
75 Threads
(3")

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
4 x Ø5 Casters, Feet, Legs, Table Fittings
75 (3") (Ø3/16")
90 (3 1/2") 50 (2")

3 (1/8")
3/8"-16 Threads

50
(2")
151 Steel
(6")
1 Plastic
(1/16") 13
(1/2")
Ø35 (1 3/8")

50 (2")

www.hafele.com/us FC 6.35
